Remove and Replace

REMOVING AND INSTALLING TRANSMISSION

Note: After completion of the work, check transmission oil level. Refer to "Oil Change In Manual Transmission"

On vehicles with ASC+T, the throttle body and/or the expansion tank on the master brake cylinder can become damaged when the transmission is lowered.

- Remove throttle body (ASC+T).
- Disconnect battery.
- Disconnect propeller shaft from transmission flange and tie up to one side. Service and Repair

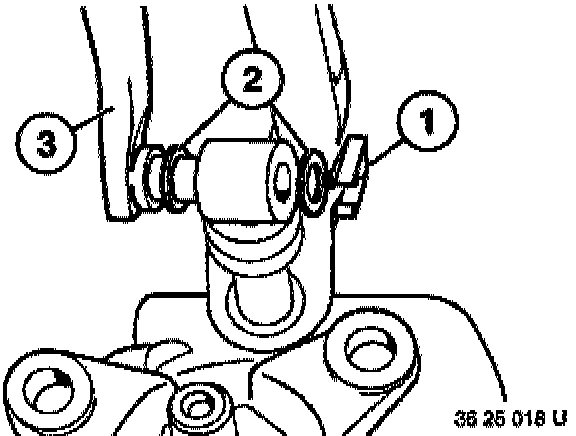

- Remove retainer (1).
- Withdraw selector rod (3) from selector linkage joint and remove washers (2).

Installation:
- Apply thin coat of grease to selector rod.

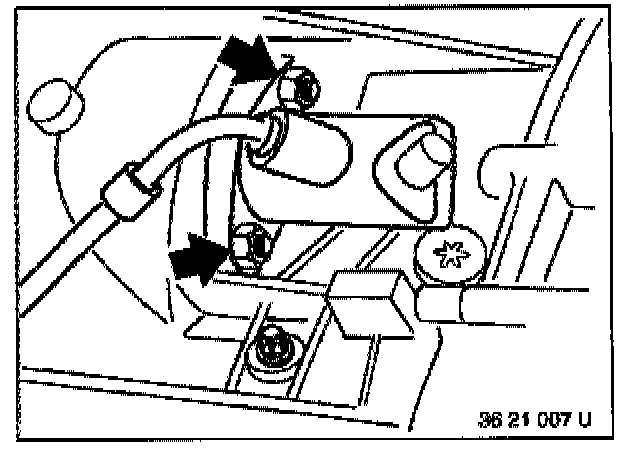

- Unfasten nuts and remove clutch slave cylinder (pressure line remains connected).

Caution! Relieve clutch slave cylinder slowly, as otherwise air will be sucked in via the sealing sleeve.

Installation:
- Tightening torque: 22 Nm




- Pull wires off reverse-gear switch. Loosen oxygen-sensor connector in holder.




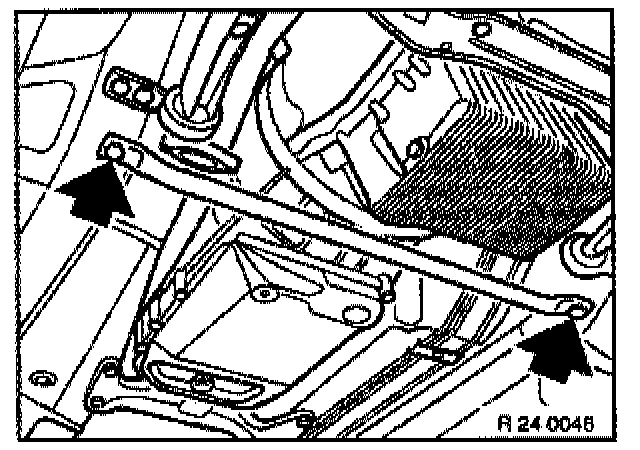

- Remove cross tube.




- Remove end fire wall

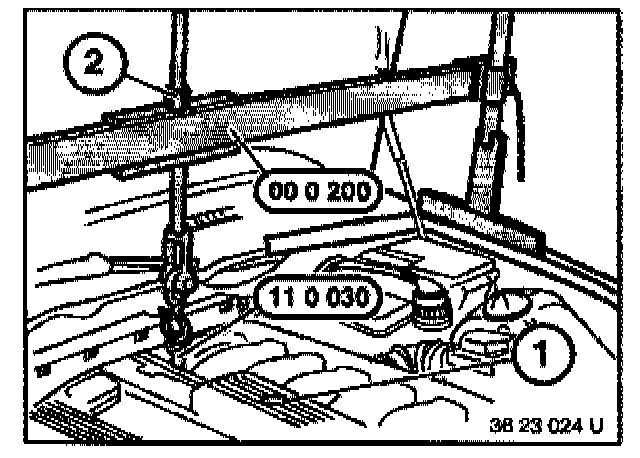

- Unscrew injection pipe cover (1). Screw special tool 11 0 030 down through intake manifold and into bracket of crankcase.
- Fit special tool 00 0 200 and attach to special tool 11 0 030.
- Tighten spindle (2).

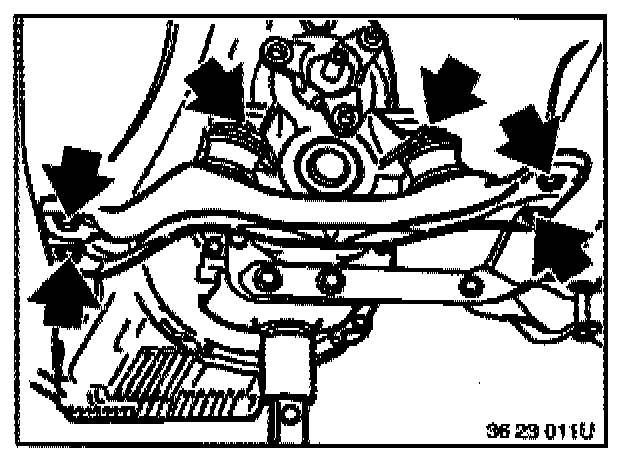

- Support transmission with a workshop hoist. Unfasten screws and remove cross member with rubber mount.
- Lower workshop hoist.

Installation:
- Tightening torque: 42 Nm




- Lower engine and transmission with spindle (2) until cylinder head and manifold are just above, but not in contact with engine fire wall or heating connections (visual check).




- Use a screwdriver to lift out spring (1) from the lug (2) on the housing and swivel upwards.
- Pull out shaft.

Installation:
- Apply thin coat of grease to bearing pin.




- Support transmission with a workshop hoist.

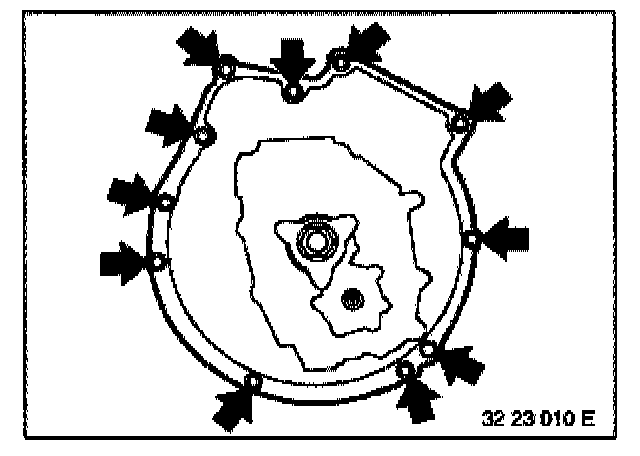

- Unfasten screws.

Caution! Do not allow transmission to hang on transmission input shaft when removing and installing, as the clutch disc will be deformed.

- Pull transmission downwards and remove.

Installation:
- Always fit screws with washers.
- Tightening Torque:
Hex Screws M8 25 Nm
M10 49 Nm
M12 74 Nm
Torx Bolts M8 22 Nm
M10 43 Nm
M12 72 Nm




Installation:
- Note dowel sleeves (1-2) and replace if necessary.
- Ensure correct position of cover plate.
- Remove and clean release unit and release lever and grease appropriate points.




Installation:
- Check lubrication of transmission input shaft for sticky consistency. If the grease is sticky, the clutch disc must be replaced.
- Check clutch disc for friction rust in taper splines and replace if necessary.
- Mechanically remove old grease and lining abrasion from tape splines of clutch disc (with a cloth).

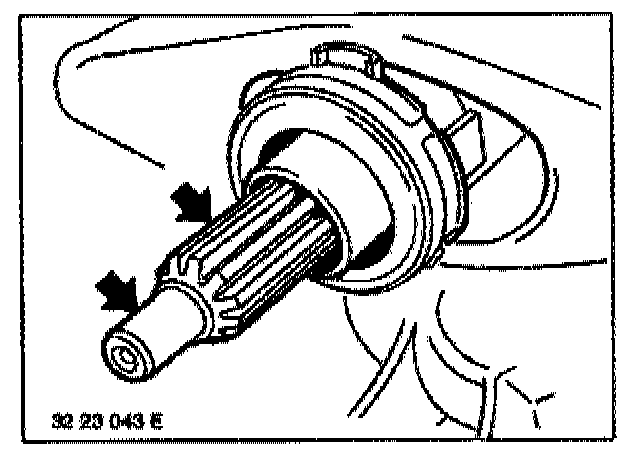

- Clean spline grooves and guide spigots on transmission input shaft and apply a thin coat of grease.
