How to Load V9.0 Software With the MODIC Station

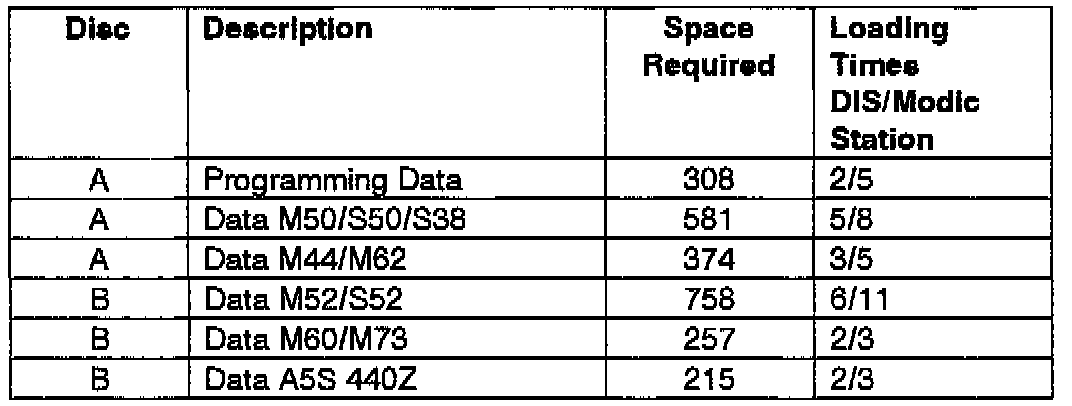

DISKETTE CONTENTS

DME Variant Code data is automatically loaded when Disc A is loaded.

(MODIC I or MODIC II)

1. Place 9.0 A in the MODIC Station drive.

2. Press 2 - Load diskette then -

3. Press 1 coding and

4. Screen says "Program Overwrite?" Y or N

5. Press "Y" - Disc A will now load. Please note that if you do not have an earlier version of this software in your MODIC you will not have to perform steps 4 and 5.

6. After Disc A is completely loaded remove disc A and replace it with Disc B. During loading the MODIC screen will display a bar graph. When the bar reaches the right side of the screen loading of the disc is complete.

7. Press 2, "Load Diskette" and a menu of Disc B will be displayed. If you wish to check and see if your MODIC has enough memory press "C" the screen will display the amount of memory that each section of the disc needs and how much memory remains in your MODIC (black box on the right).

Special Note:
When the MODIC is attached to a car and the main menu is displayed the "C" may be pressed to bring you to an "erase" menu. You erase a program by simply pressing the number and.

8. Disc B may be partially loaded by simply pressing any combination of the menu # s. Only 1 selection may be loaded at a time.

9. If you attempt to load a program and there is insufficient memory for it, the MODIC will display "Memory Insufficient. Do you want to erase Y or N".

If "Y" is entered a menu screen will allow you to pick which software you wish to erase.

Downloading of this software must only be done with the MODIC Station. Never attempt to load this software with the DIS.
