Special Tools - M73 Engine Tools

Group 04
Tools and Equipment

Bulletin Number
04 09 95 (4220)

Woodcliff Lake, NJ
June 1995
Product Engineering

SUBJECT:
New BMW Special Tools

MODELS:
E31/E38 with M73

Situation:
The following tools have been developed for the M73 engine and will be distributed via the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. All of the tools on this bulletin are covered by the BMW Tool Warranty. Please refer to Parts Bulletin 1-24 dated 4/95 for complete details. All prices on this bulletin are introductory prices.





Retaining Bracket
90 88 6 111 072
$12.15





Used to attach the cylinder head to the
holding frame (88 88 6 111 065).





Crankshaft Holder
90 88 6 112 420
$16.25





Used to hold the crankshaft when tightening
or unfastening the central bolt.

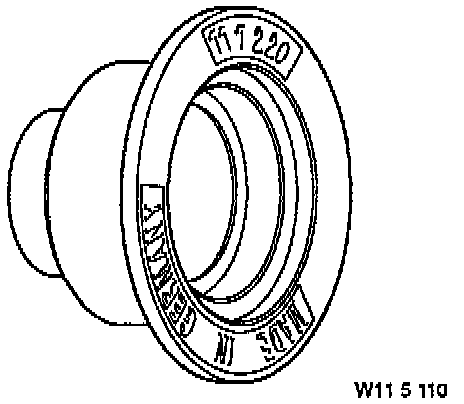

Seal Installer
90 99 6 115 110
$15.35





Used to install the front crankshaft seal in
the timing case cover.





Engine Support
90 88 6 117 310
$11.50





Used to support the engine when the
transmission has been removed.





Installation Plate
90 88 6 350 010
$13.55





Template for installation of PWG on its
mounting. E38 only.





Installation Plate
90 88 6 350 020
$31.85





Template for installation of PWG on its
mounting. E31 only.

The following tools are available for purchase through your PDC. They will not be
distributed through the Automatic Tool Shipment Program.





Extensions
90 88 6 127 130
$22.20





Used in conjunction with 88 88 6 121 171
and 90 88 6 121 200 to R&R the spark
plugs.





Base Plate
90 88 6 112 006
$52.55





Replacement base plate for crankshaft
sprocket puller 88 88 6 112 000.
