Replacing Backrest Side Section For Rear Seat (Compact)

Removing and installing or replacing left or right backrest side section for rear seat (corn pact)

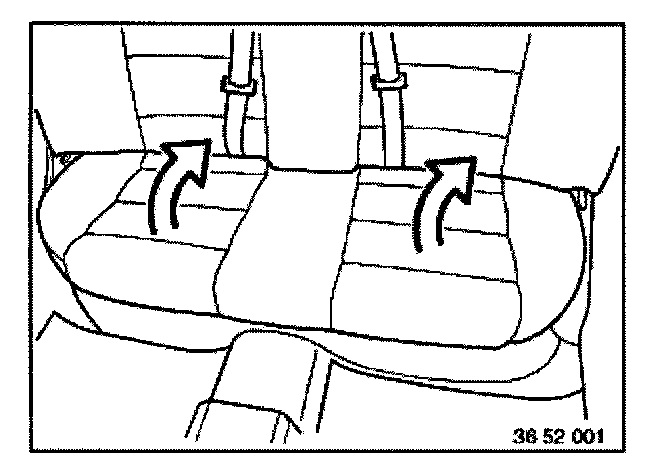

Unclip rear set cushion on left and right and lift out.

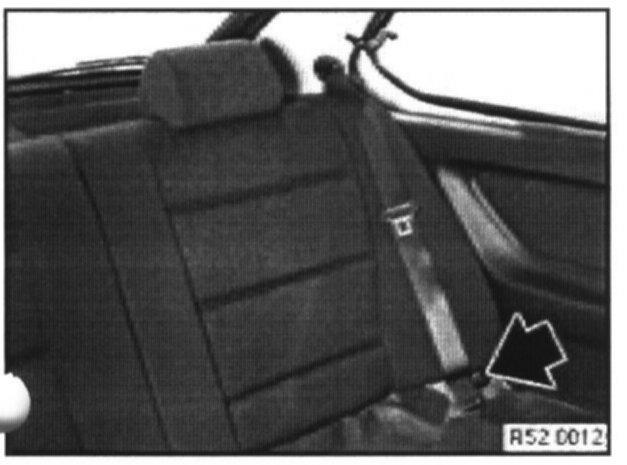

Remove nuts.
Fold down backrest.

Installation:
If necessary, replace nut.

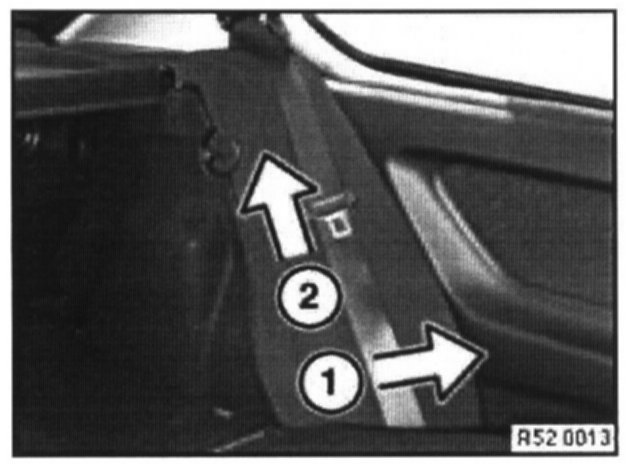

Unclip backrest side section at bottom (1) and take it out upwards (2).
