Halogen Bulb Replacement

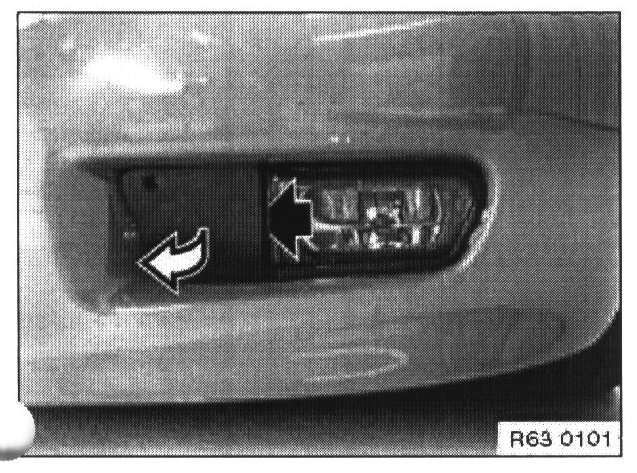

- Unclip headlight by inserting a screwdriver through upper aperture.
Pull off connector. Disconnect steel-wire clamp and pull out light bulb.


WARNING: Do not take hold of glass part of bulb with bare fingers. only take hold of bulb on base or with a clean cloth or packaging of light bulb.





roadster

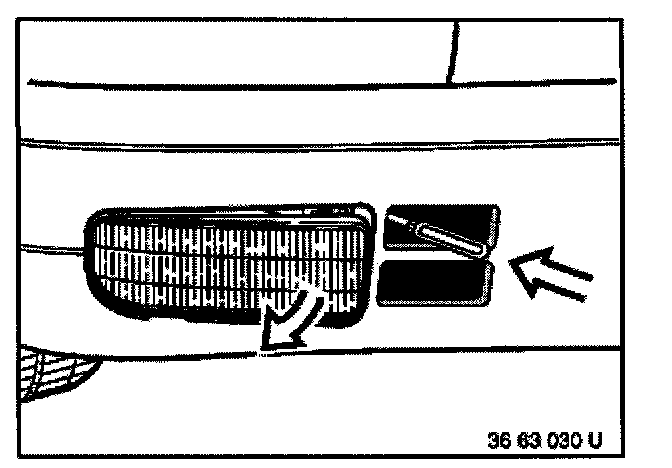

- Unclip plate.




- Unfasten screws, pry out headlight insert and remove connector.
- Disconnect wire spring clip and remove light bulb.
