6 and 26 Pin Elo-Connector (Electronics Connector)

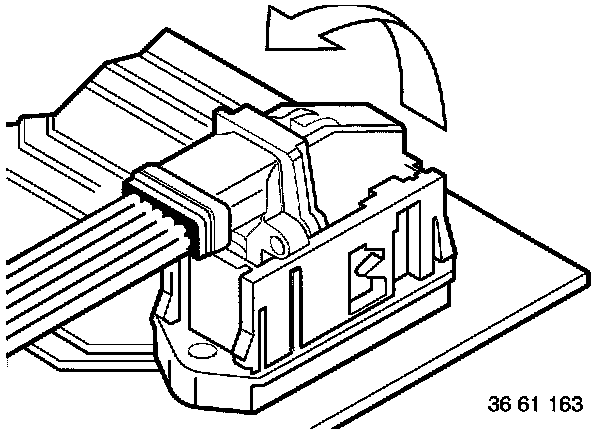

- Unlock lock.

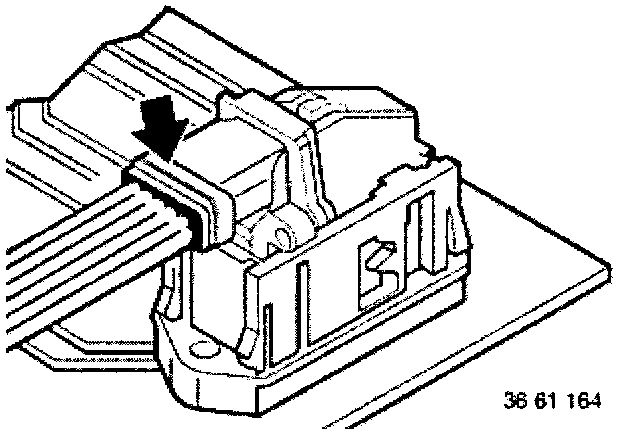

- Unfasten cable connector.

Installation Note: Do not forget to install cable strap.

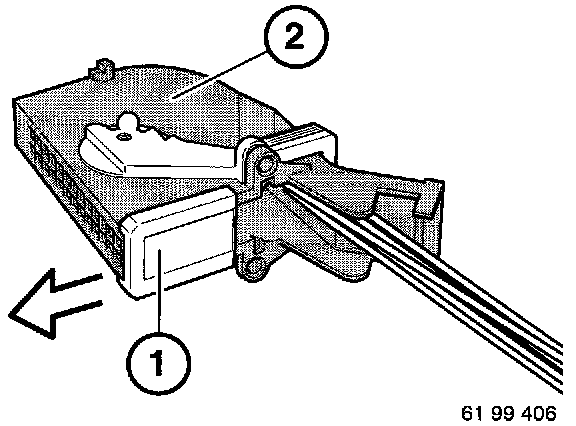

- Pull off lock (1) (slide).




- Press contact carrier (3) and cables out of aperture (5).

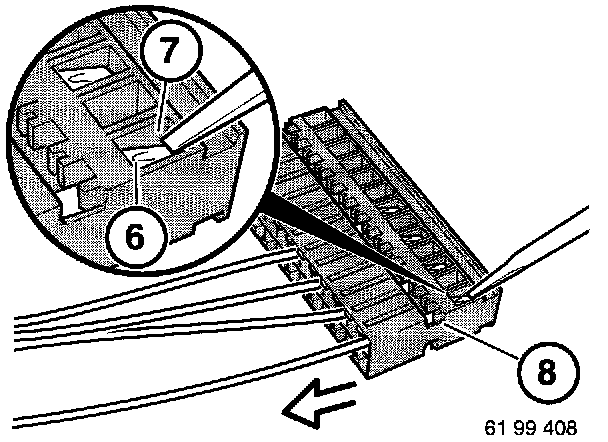

- Hold down arrester hook (6) on defective contact and pull cable with contact up to secondary lock (8).

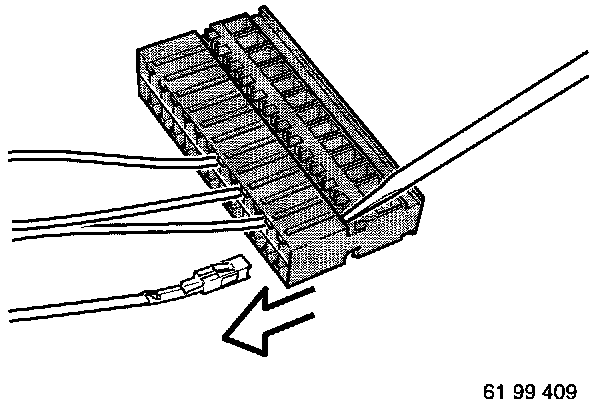

- Hold down arrester hook once again in secondary lock (8) and pull cable and contact completely out of contact carrier.
