Home >> BMW >> 1997 >> 318i Convertible (E36) L4-1895cc 1.9L DOHC (M44) >> Repair and Diagnosis >> Diagrams >> Splices >> Splice Location Views >> Front Harness >> X10302

X10302

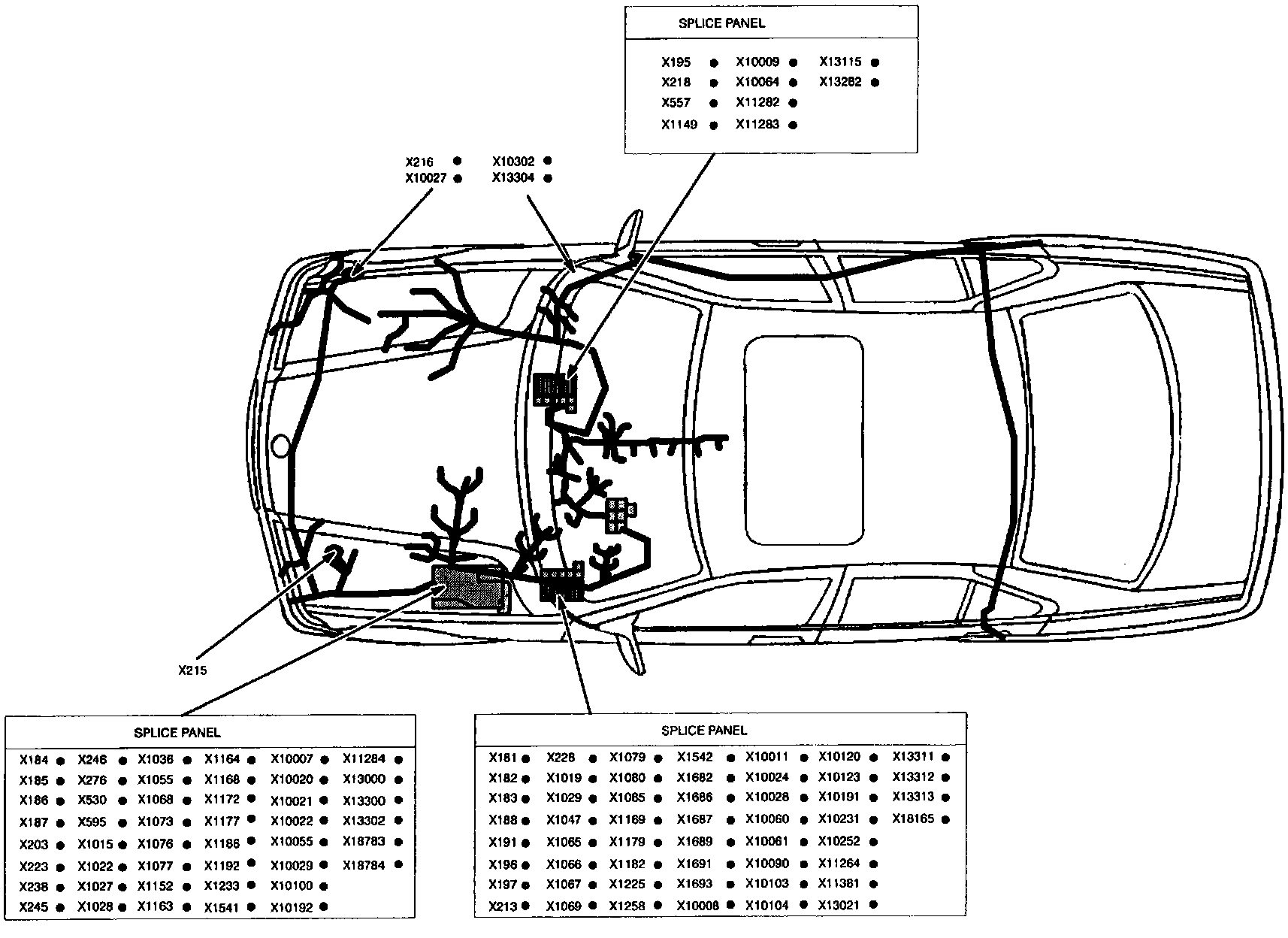

Splice Location Views: Front Harness:
