Home >> BMW >> 1997 >> 318i Convertible (E36) L4-1895cc 1.9L DOHC (M44) >> Repair and Diagnosis >> Diagrams >> Splices >> Splice Location Views >> Rear Wiring Harness-Convertible >> X10269

X10269

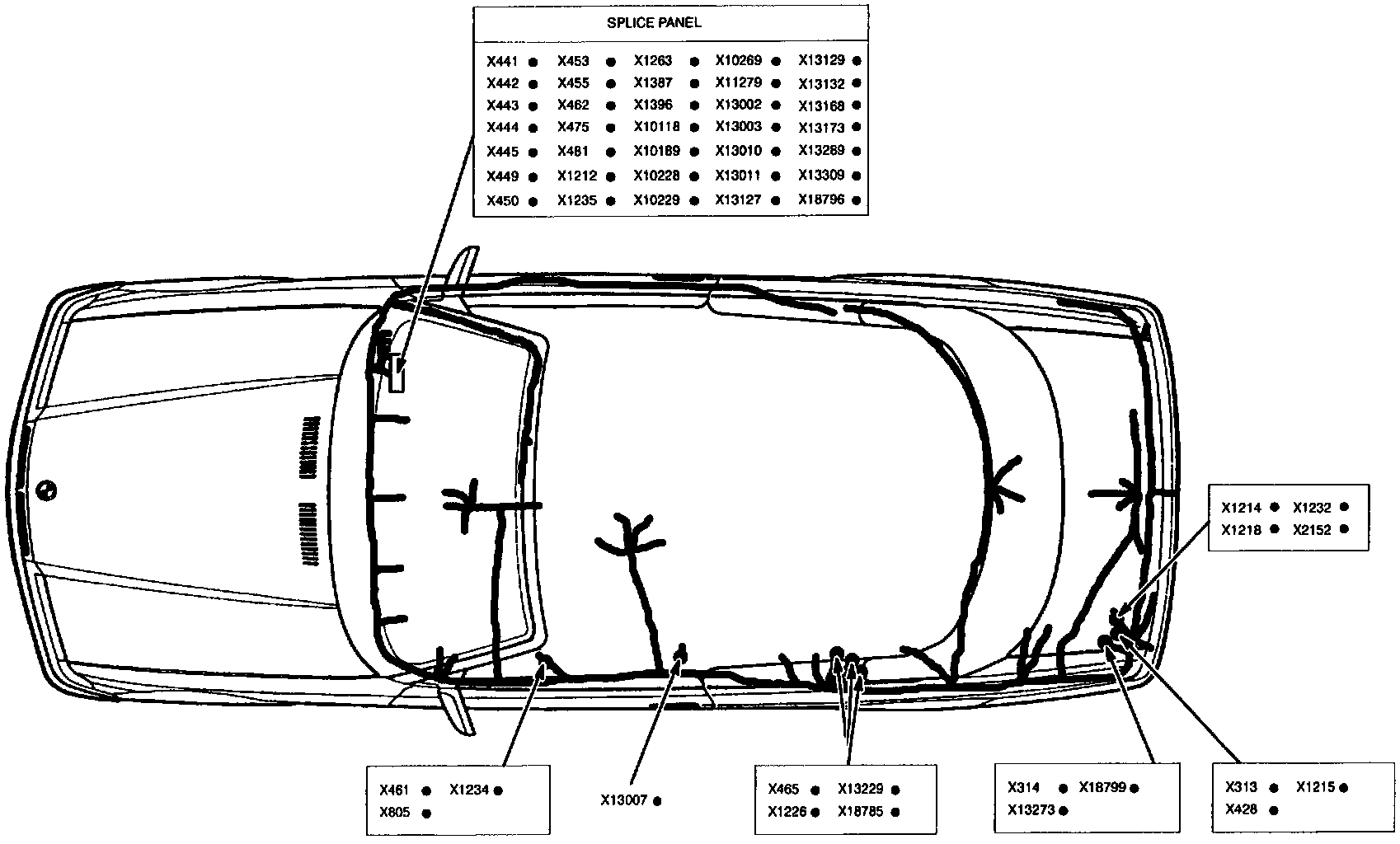

Splice Location Views: Rear Wiring Harness - Convertable:
