Cutting Cable to Length

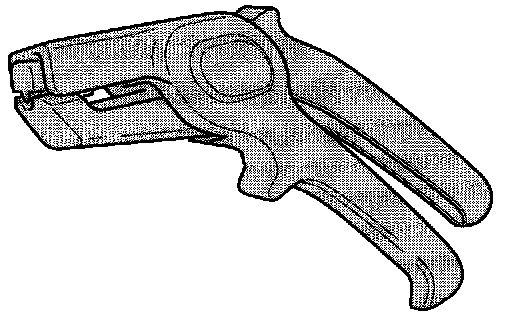

- Use special tool 61 9 043 (insulation strippers with wire cutter).

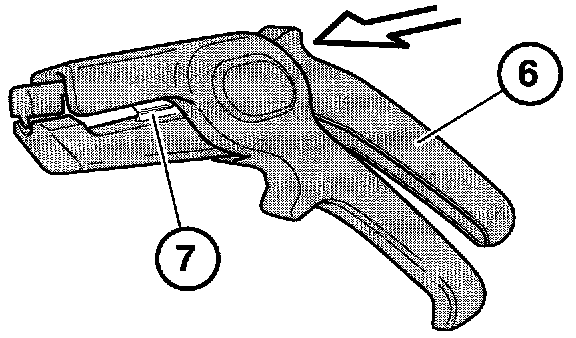

- Slide upper handle of insulation strippers (6) in direction of arrow until cutting tool (7) becomes visible. Open pliers in final position and hold in this position.

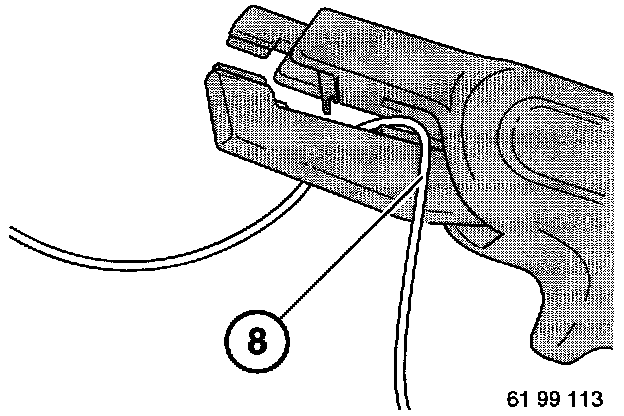

- Hold wire (8) between cutters and squeeze pliers as far as they will go.
