Passenger Side

WARNING: Review Service Precautions. Improper handling could cause activation of the airbag(s) and lead to injuries! Service Precautions

REMOVE
- Disconnect battery and cover negative pole or terminal.
- A waiting period of approximately 5 minutes should be observed before beginning electrical work to allow the capacitor charge to dissipate.





- Remove lower steering column casing section.

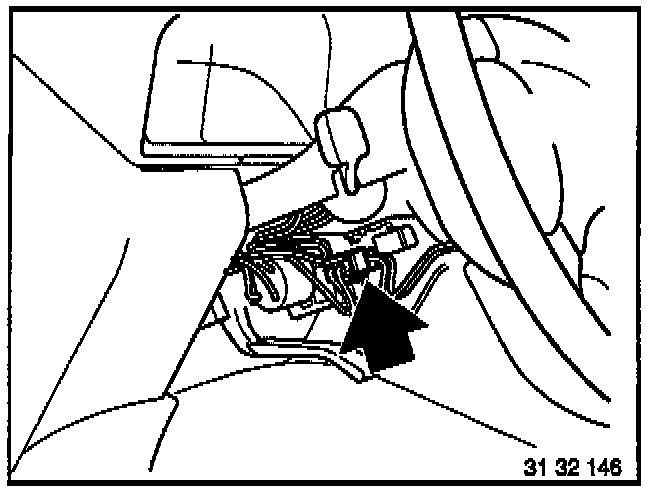

- Pull (orange) plug connection out and disconnect.





WARNING: Lay airbag unit to one side (in the luggage compartment). Padded side must always face up.

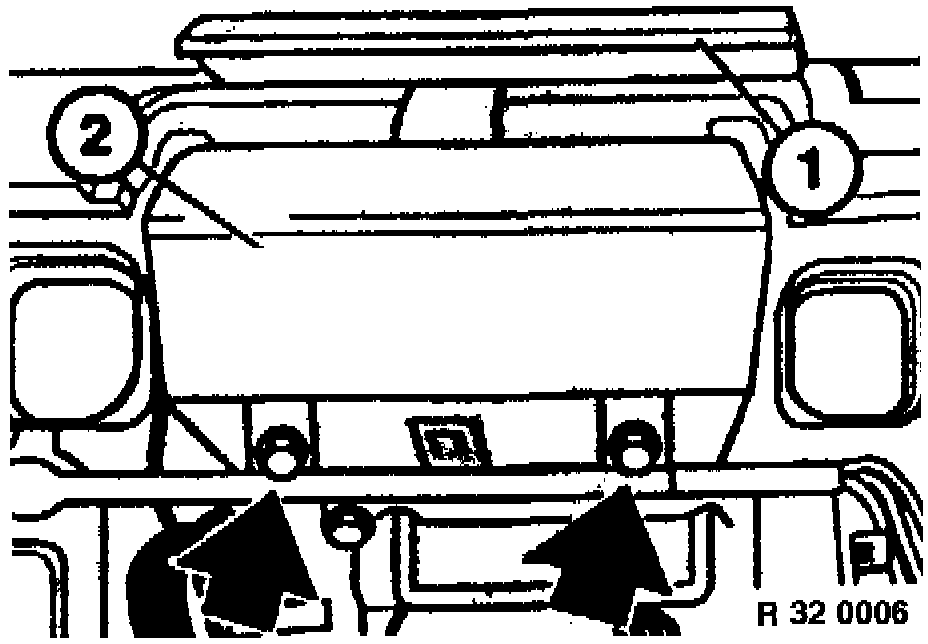

- Lift out covering (1).
- Unfasten screws, lift off passenger airbag (2) and remove plug connectors.

INSTALL
- Install in reverse manner. Do not pinch cables.
- Check for possible trouble codes.
- Verify proper system operation.
