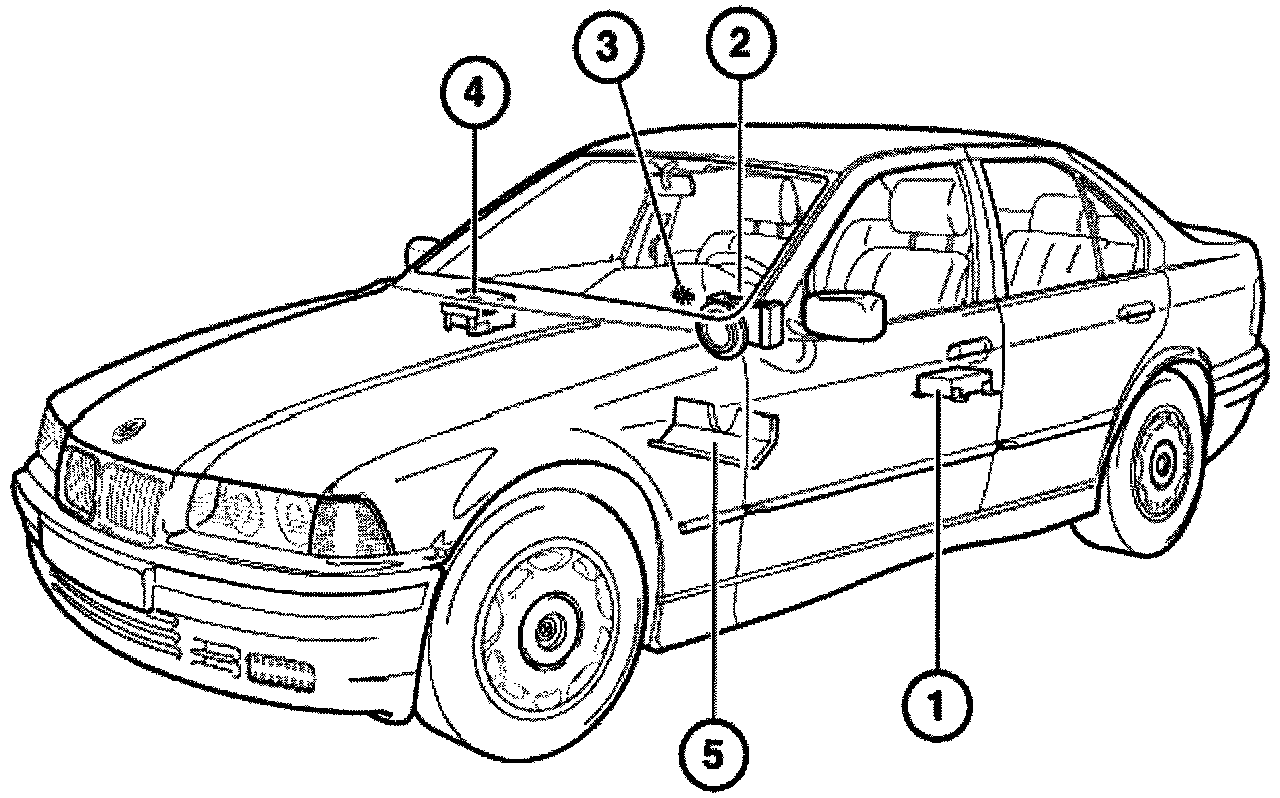

Air Bag Systems: Locations

Components:





1. Basic airbag unit ECE/central airbag unit US, (beneath rear-seat bench in center)
2. Steering wheel with airbag unit (airbag, gas generator, squib and contact ring)
3. Airbag indicator light (in instrument cluster)
4. Passenger airbag unit (airbag, gas generator ignition squib)
5. Knee protection (US model)
