Air Temperature Sensor ( Ambient / Intake ): Service and Repair

- Interrogate fault memory.
- Switch off ignition.

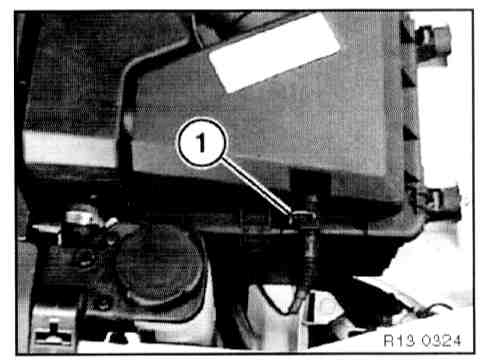

- Disconnect plug connection on temperature sensor (1).

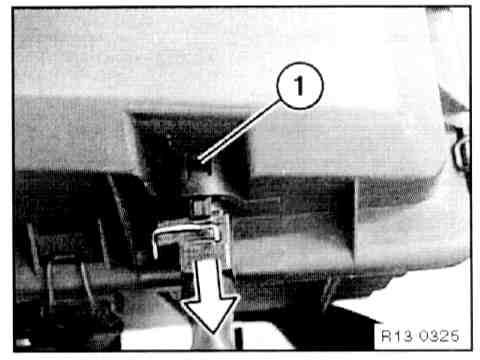

- Depress interlock button (1), unclip temperature sensor and remove from intake air manifold.

Installation Note: Interrogate fault memory of DME control unit, check faults in memory, rectify faults and clear fault memory.
