Service Interval Indicator

Service Interval Indicator

The Service Interval indicator is integrated into the instrument cluster. It consists of a row of LED's and two indicators displaying "OIL SERVICE" and "INSPECTION". The row of LED's signifies the length of time remaining before an inspection or oil service.

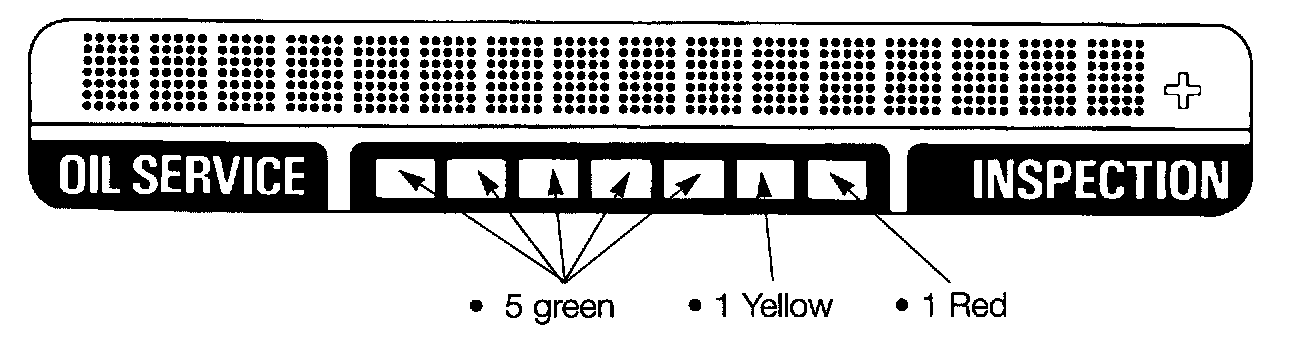

The row of LED's are only illuminated when the ignition switch is first turned to the "ON" position and will stay on for approximately eight seconds. The row of LED's is made up of:







With a new or recently serviced vehicle, all five of the green LED's are illuminated with the ignition key turned to ON just prior to engine starting. Over a period of time and accumulated mileage, the number of illuminated green LED's will reduce.

When service is due all green LED's will be out and the yellow LED will be lit and stay on when the engine is running. Additionally, "Oil Service" or Inspection will be illuminated indicating what type of service is required.

If the service is not performed the red LED will also illuminate and stay on when the engine is running after an additional 1000 miles has accumulated.

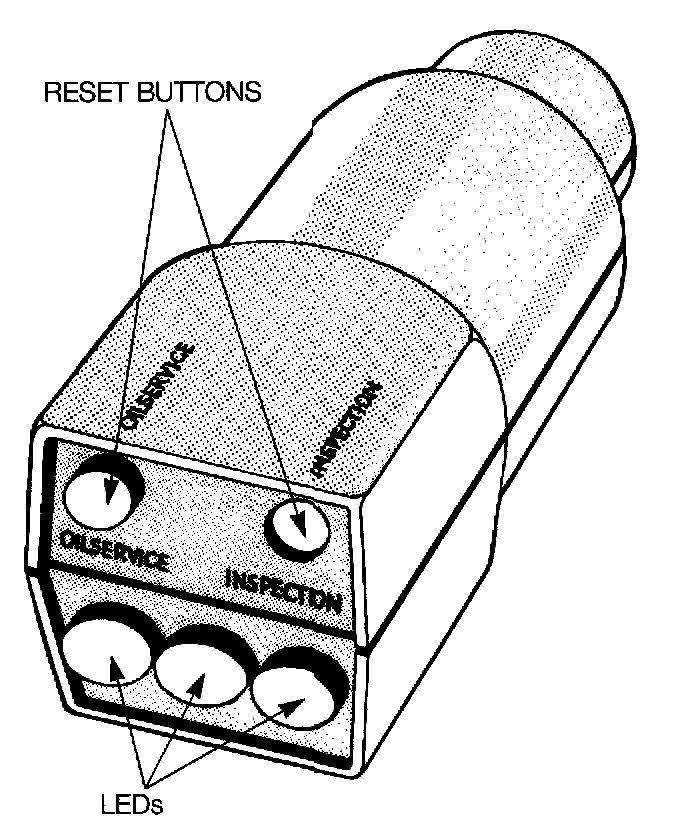

When service is performed Service Interval Indicator is reset using the BMW Service Interval Indicator Reset Tool (P/N 88 88 6 621 100).

Resetting Procedure







To reset the service indicator following an oil service or inspection perform the following:
1. Insert the reset tool into the diagnostic connector.
2. Turn the ignition on but do not start the engine.
3. Push and hold the applicable button on the reset tool (OIL SERVICE or INSPECTION).

OIL SERVICE RESET
- Green LED on tool illuminates.
- Yellow LED illuminates after 10 seconds.
- Yellow LED goes out after 3 seconds.
- Release button and remove tool.

INSPECTION RESET
- Green LED on tool illuminates.
- Red LED illuminates after 3 seconds.
- Red LED goes out after 12 seconds.
- Release button and remove tool.

4. If an error is made before the above sequence of events is completed, repeat the procedure.
5. The Service interval indicator is not reset at the 1200 mile service.
