Planetary Gear Sets I and II

Dismantling and assembly/replacing planetary gear sets I and II
Refer to Input Clutch "B". Input Clutch "B"

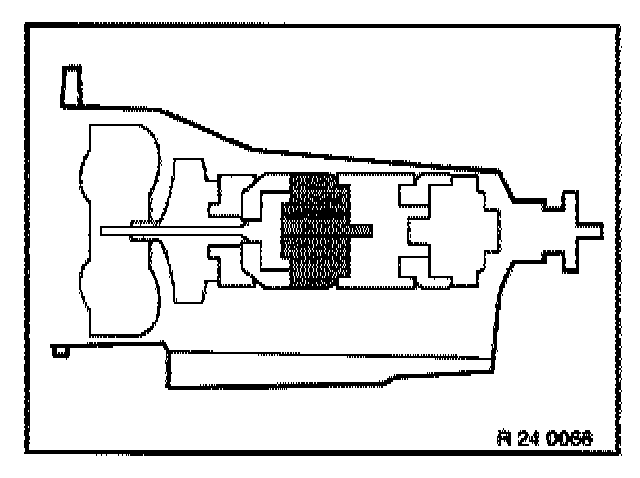

Arrangement of planetary gear sets I and II





Lift off thrust bearing.





Lift out intermediate shaft and axial bearing.





Lift out sun shaft and axial bearing.





Lift out pot.





Lift out sun gear.

Installation:
Check installed direction.





Lift out planet carriers I and II.





Remove thrust bearing and shaft with hollow gear.





Remove thrust bearing.

Installation:
Note installation position of angled disc.





Remove bowl.
