Transmission Specifics
>>
A5S 440Z
A5S 440Z
A5S 440Z

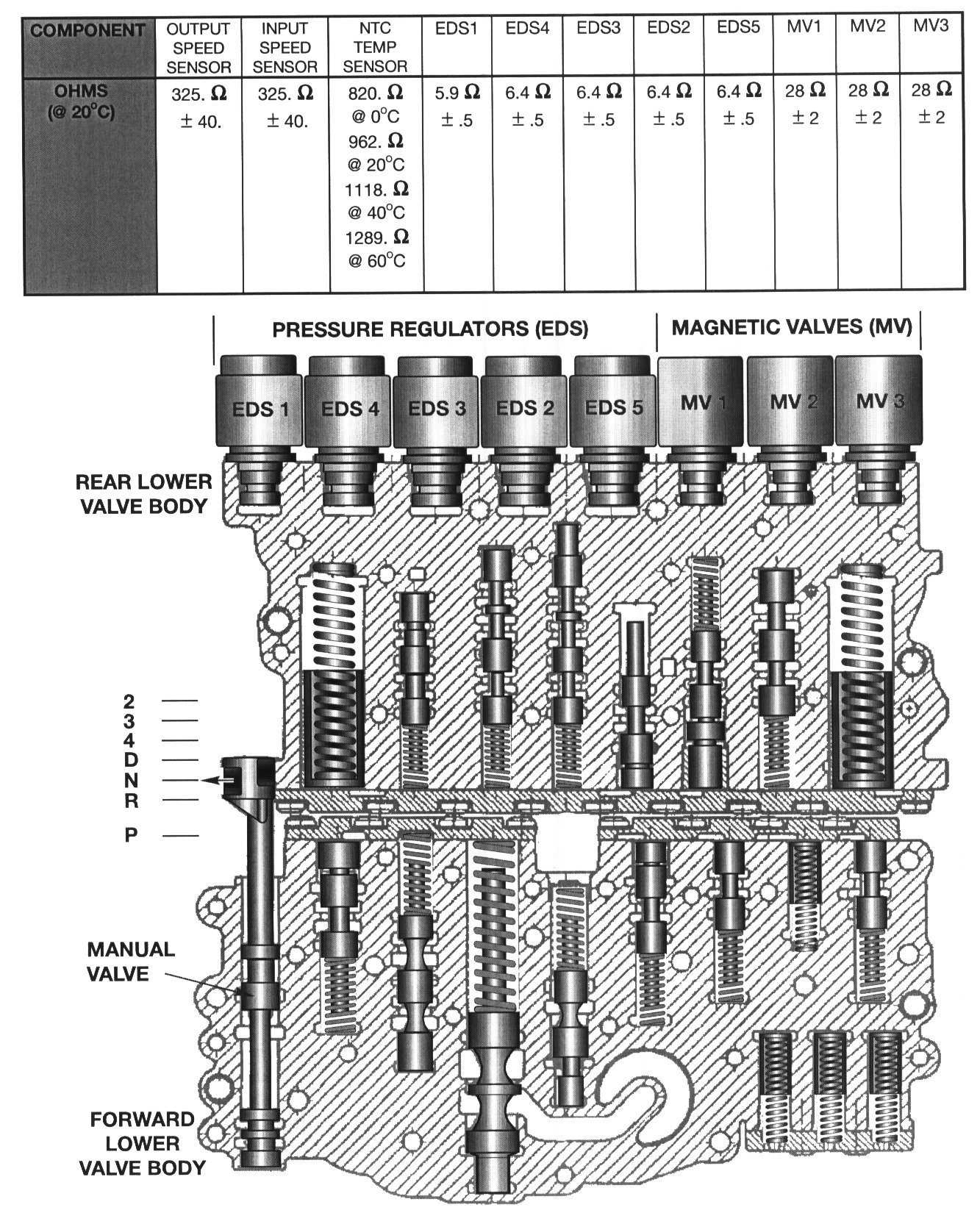

Valve Body Component Identification

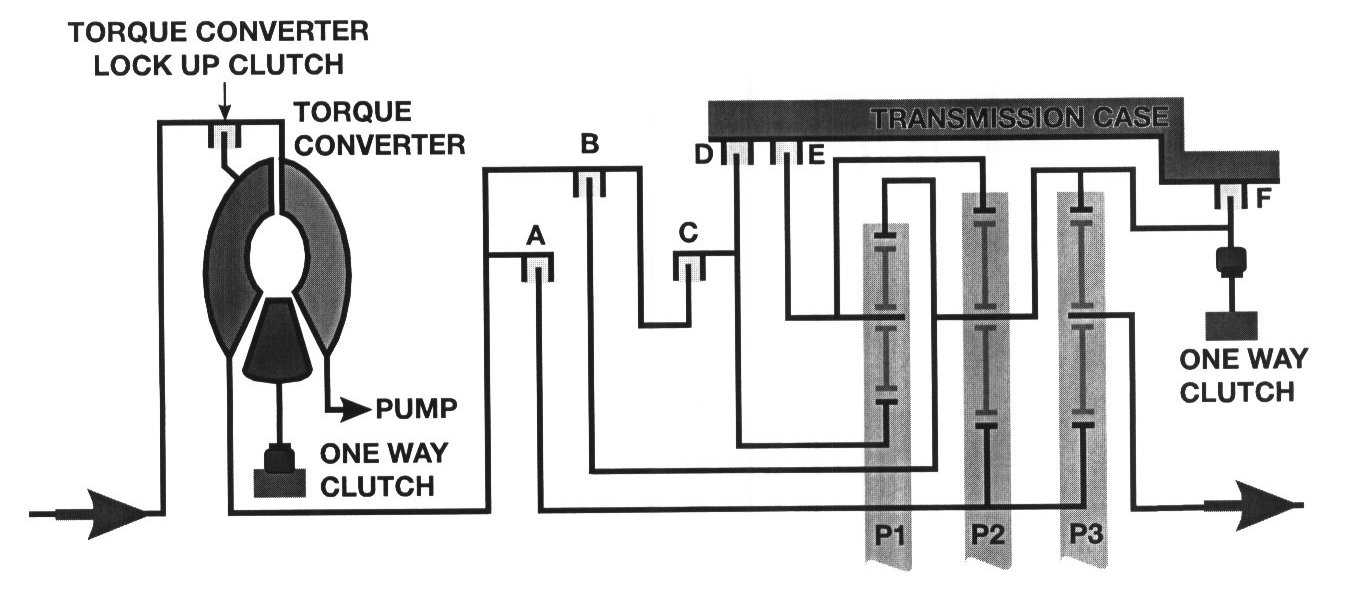

A5S 440Z - Power Flow Schematic

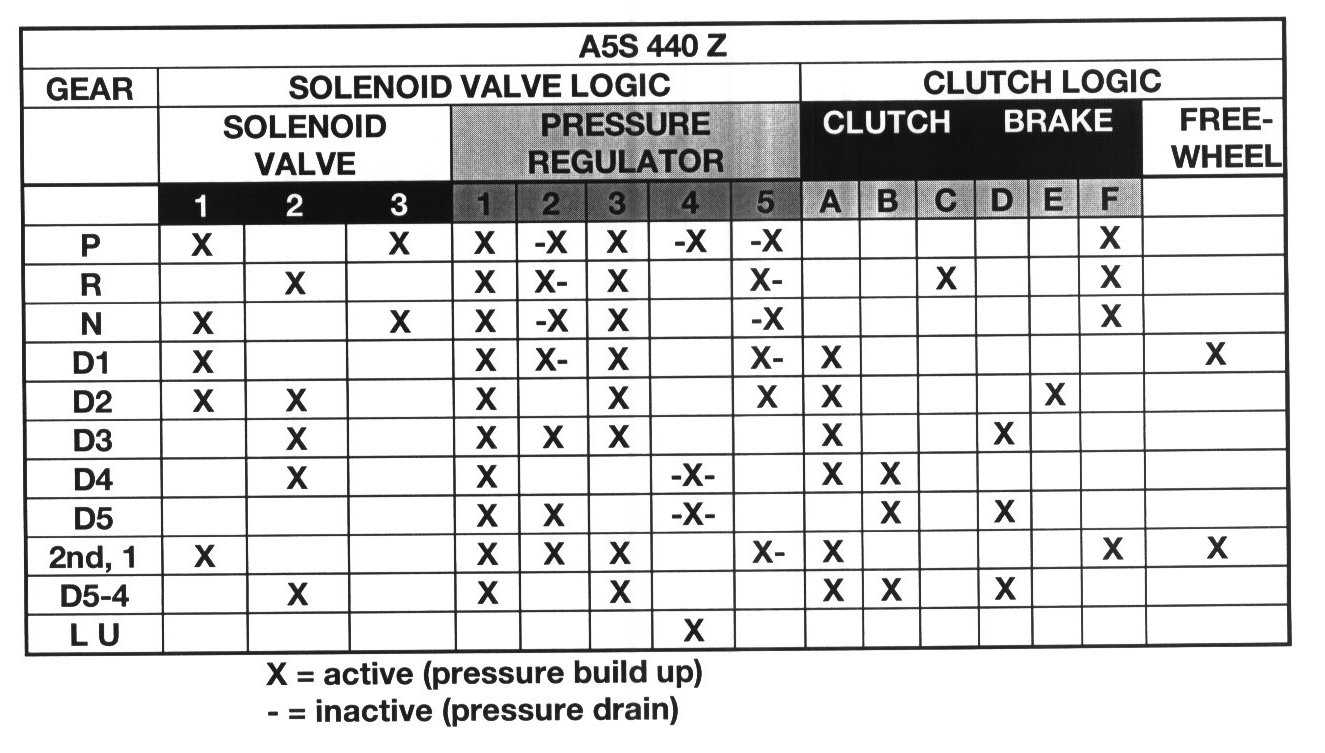

Gear Application Chart

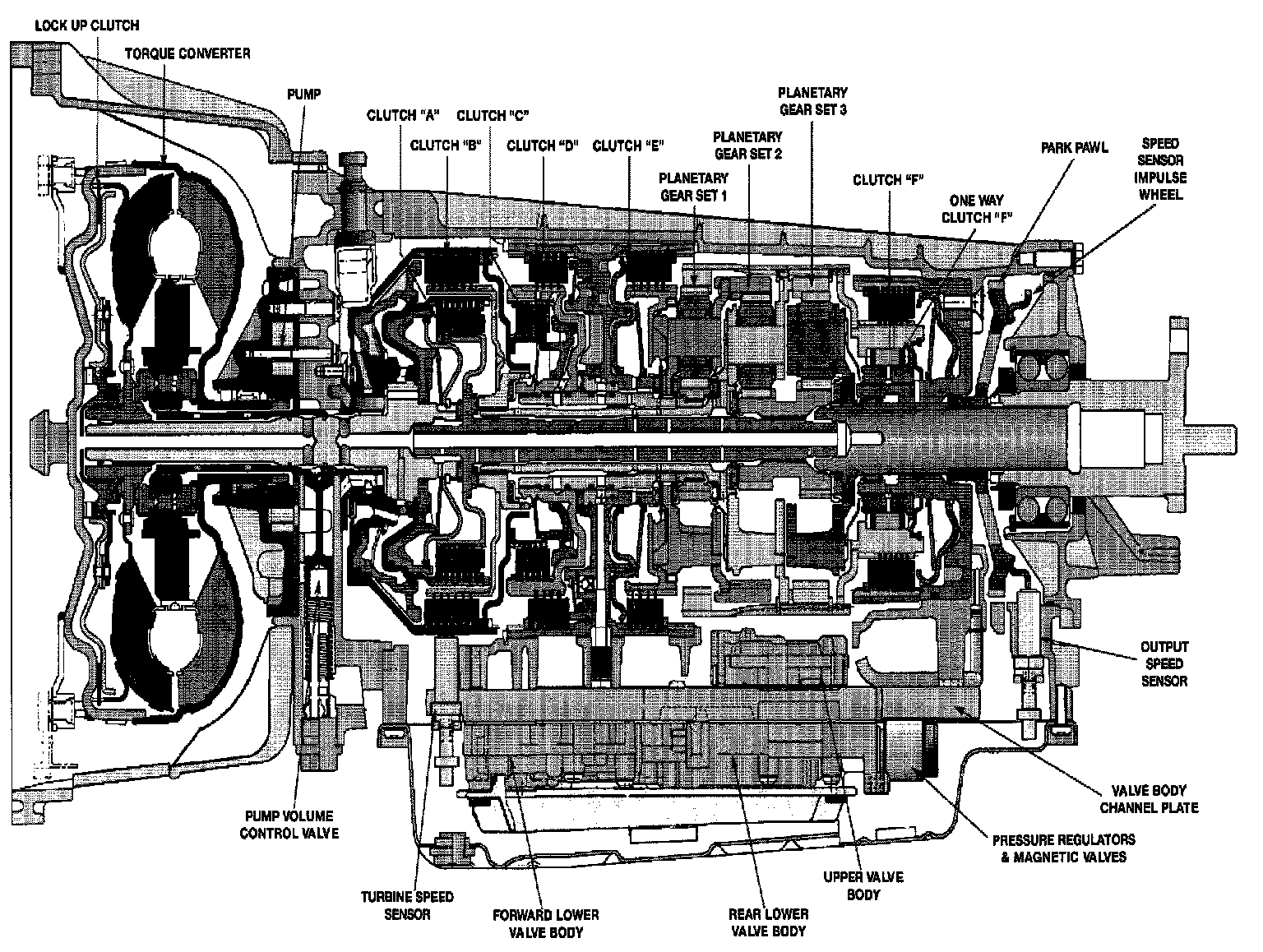

Component Locations
