Components: Overview

THE MAIN COMPONENTS OF THE EML IIIS SYSTEM INCLUDE:

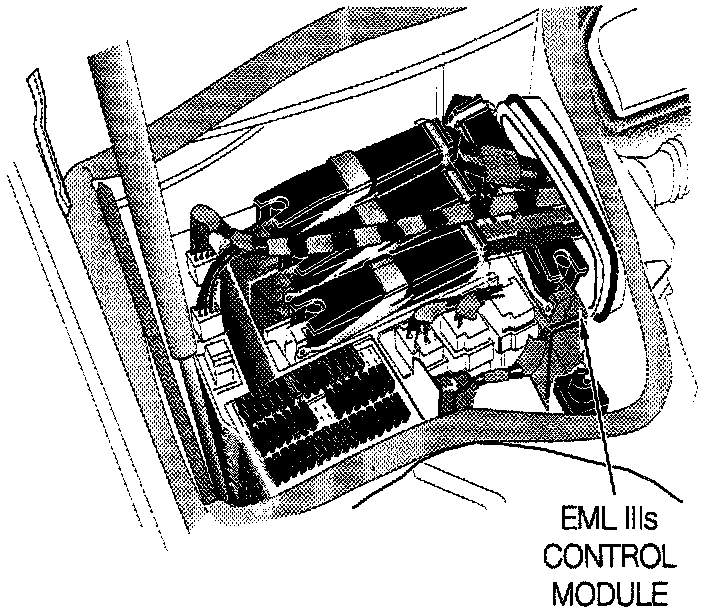

- The EML IIIs control module - located in the E-box.

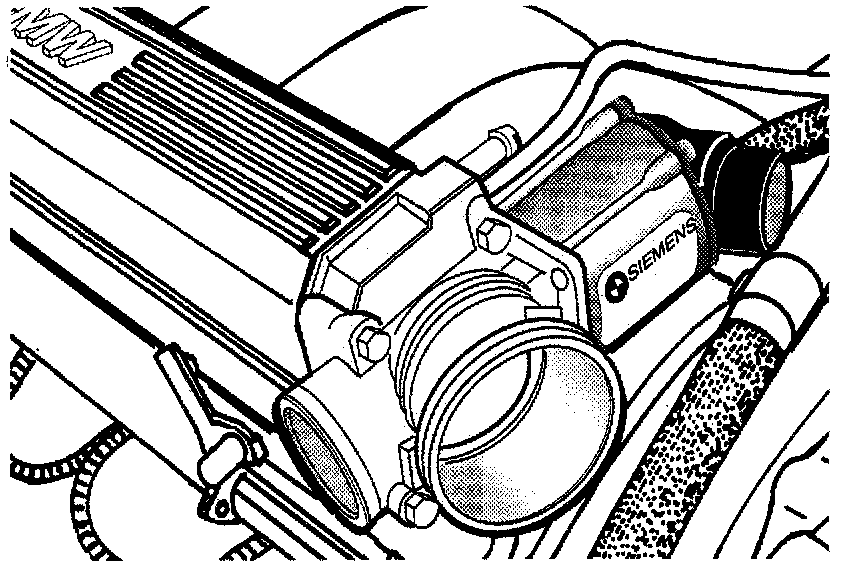

- Two throttle (DK) assemblies - mounted on each intake manifold.



- One pedal position sensor (PWG) - connected to the accelerator pedal (with a separate kick-down switch).
- Electronic brake light switch.

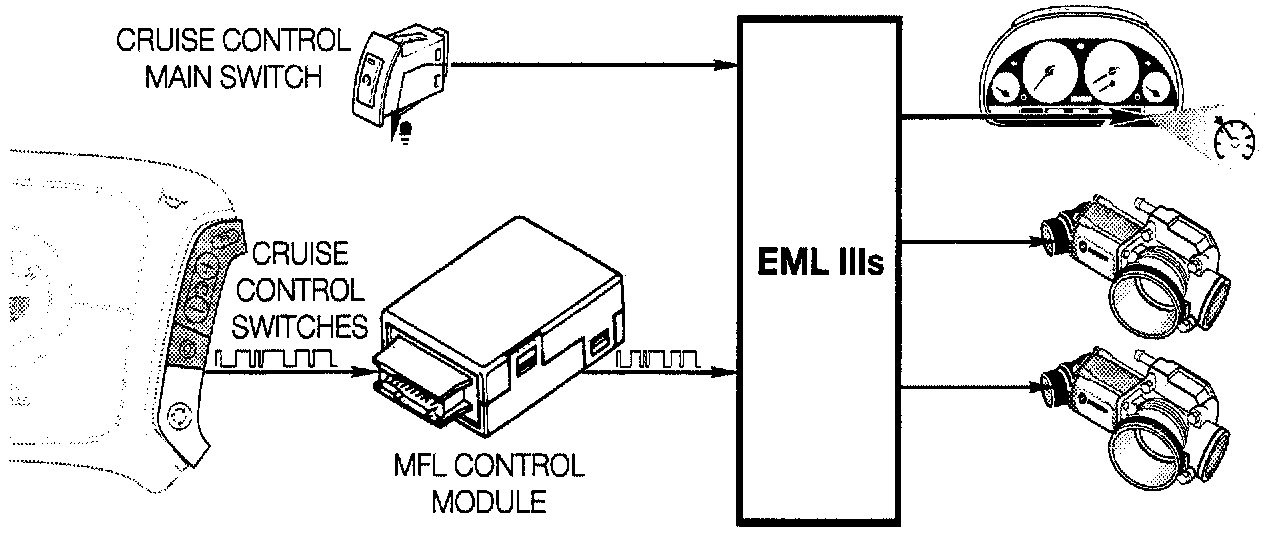

- Cruise control main switch - mounted on the instrument panel. Provides a switched ground input to the EML control module. (E38 only)



- Multi-Function Steering Wheel - cruise control switch pad and the MFL control module. (E38 only)

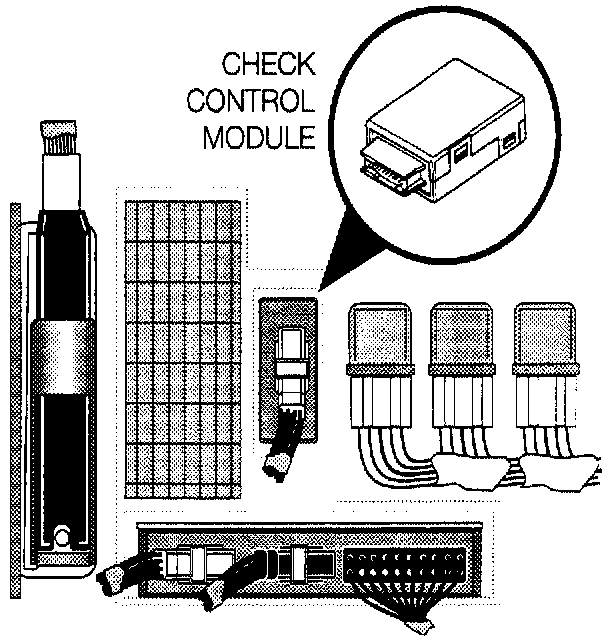

- Check control module - for activation of the fault warning display.
