MS42.1 (6-Cylinder M52)

Engine Control System MS42.1: Pin Assignments (Part 1 Of 11):

X60001

X60001 Component Connector (9-pin, Black):

Engine Control System MS42.1: Pin Assignments (Part 2 Of 11):

X60002

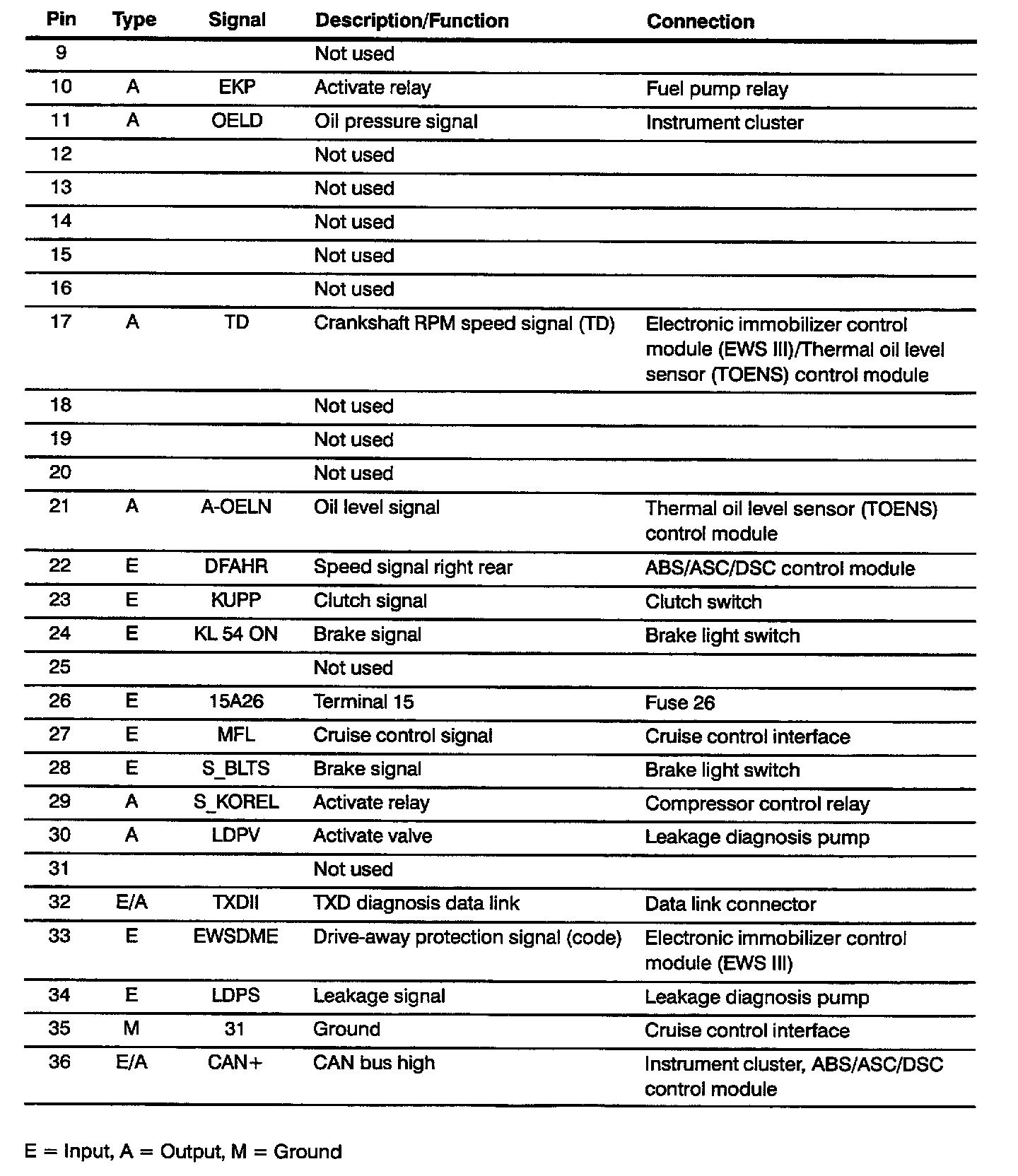

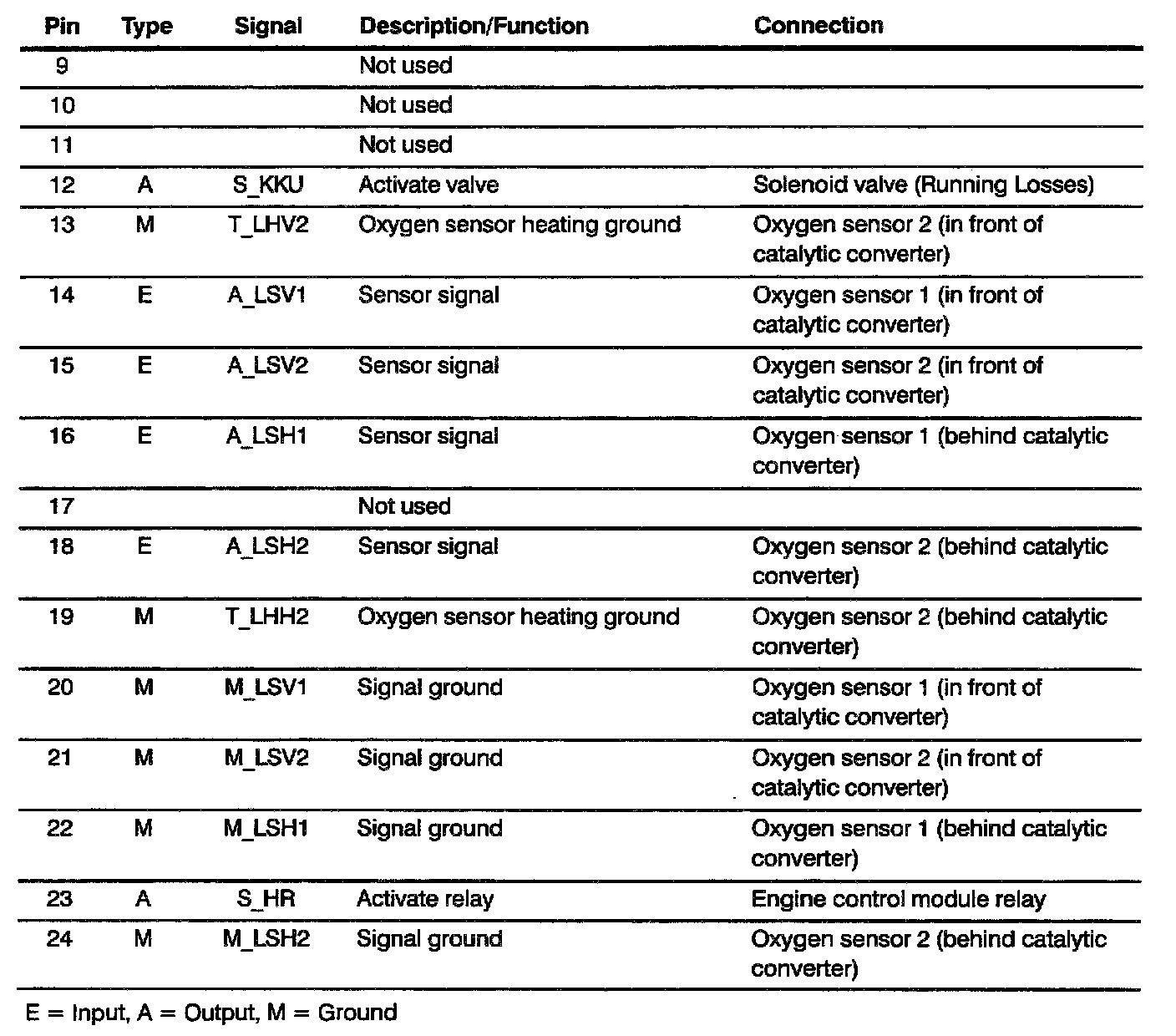

X60002 Component Connector (24-pin, Black):

Engine Control System MS42.1: Pin Assignments (Part 3 Of 11):

Engine Control System MS42.1: Pin Assignments (Part 4 Of 11):

X60003

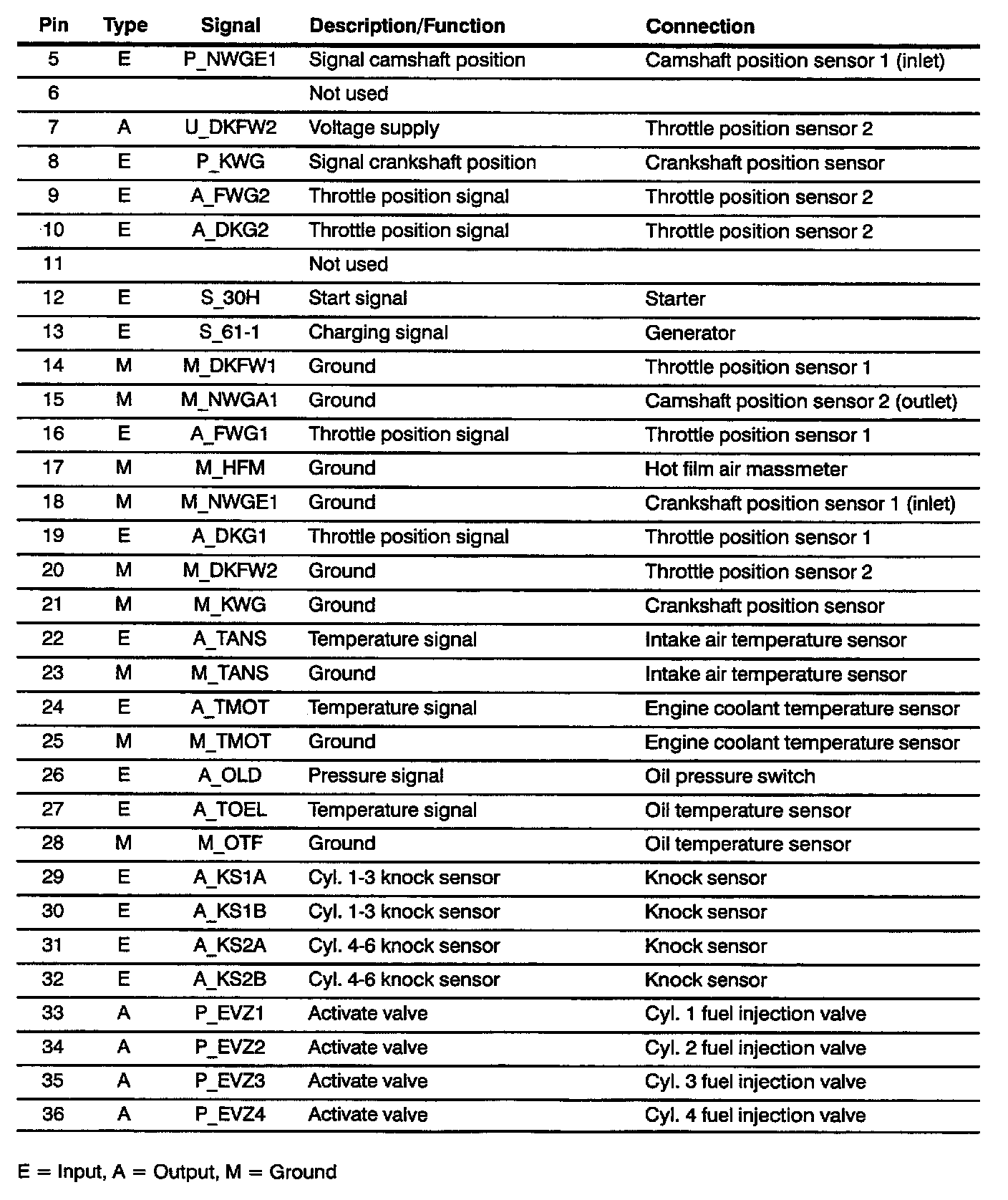

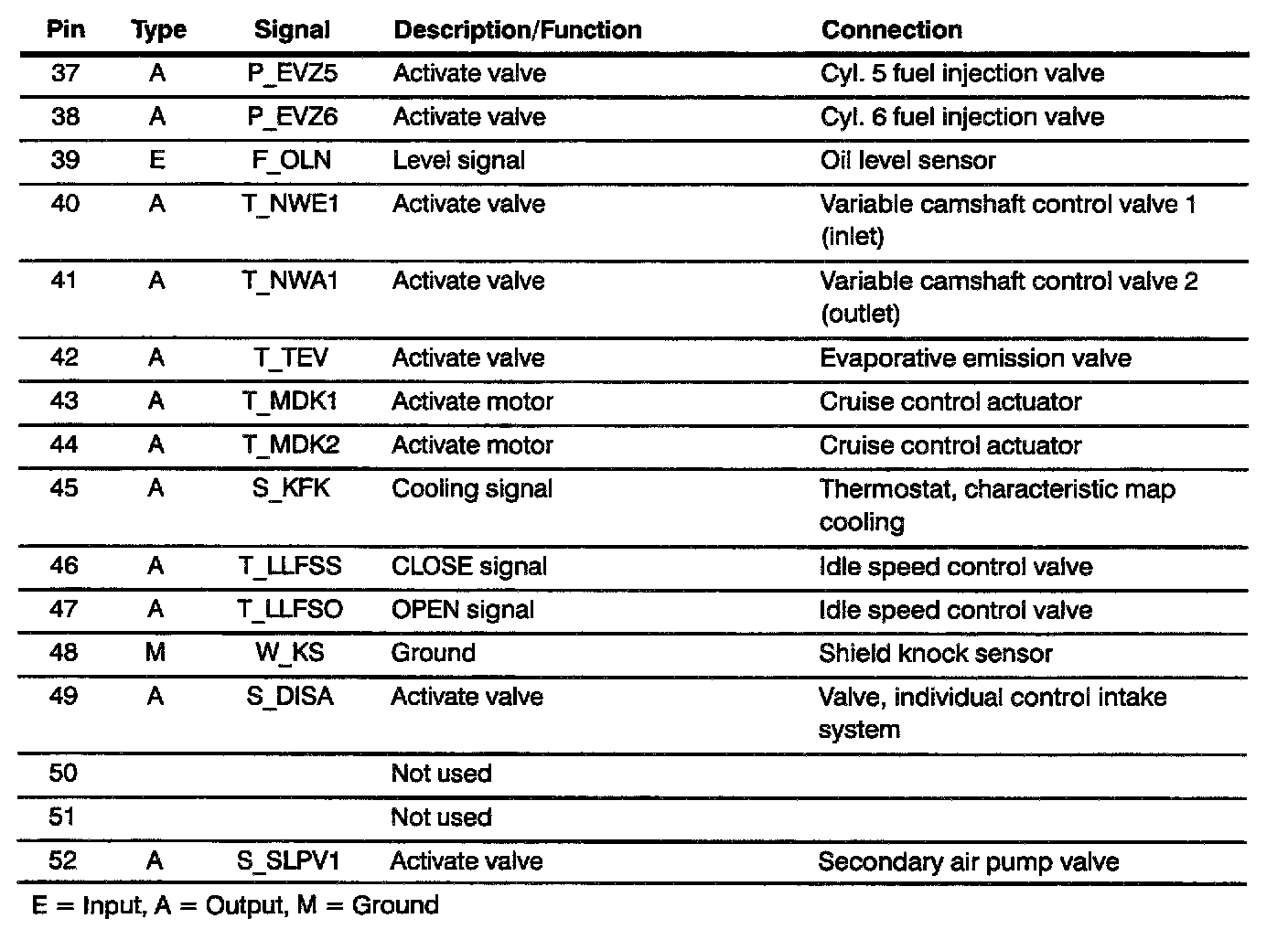

X60003 Component Connector (52-pin, Black):

Engine Control System MS42.1: Pin Assignments (Part 5 Of 11):

Engine Control System MS42.1: Pin Assignments (Part 6 Of 11):

Engine Control System MS42.1: Pin Assignments (Part 7 Of 11):

X60004

X60004 Component Connector (40-pin, Black):

Engine Control System MS42.1: Pin Assignments (Part 8 Of 11):

Engine Control System MS42.1: Pin Assignments (Part 9 Of 11):

Engine Control System MS42.1: Pin Assignments (Part 10 Of 11):

X60005

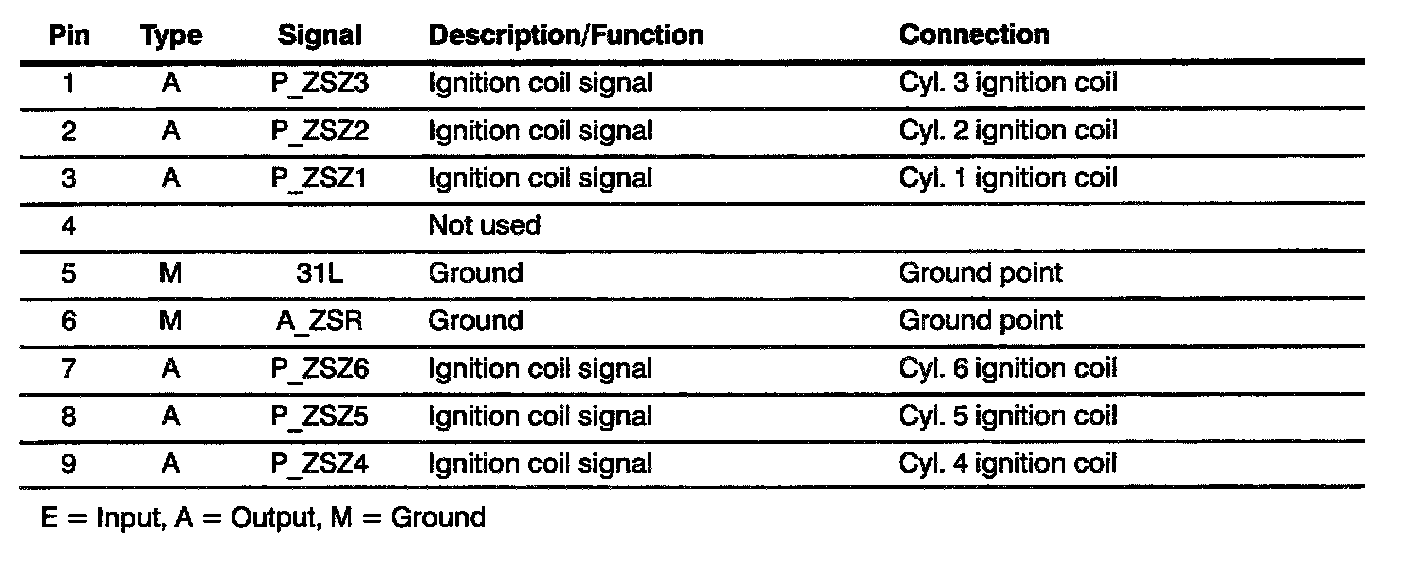

X60005 Component Connector (9-pin, Black):

Engine Control System MS42.1: Pin Assignments (Part 11 Of 11):
