Oil Level Sensor For ECM: Service and Repair




Replacing Level Switch For Engine Oil

Turn off ignition.
Release oil filter cap so that engine oil from oil filter can flow
back into oil pan.
Remove underbody paneling.
Drain engine oil.

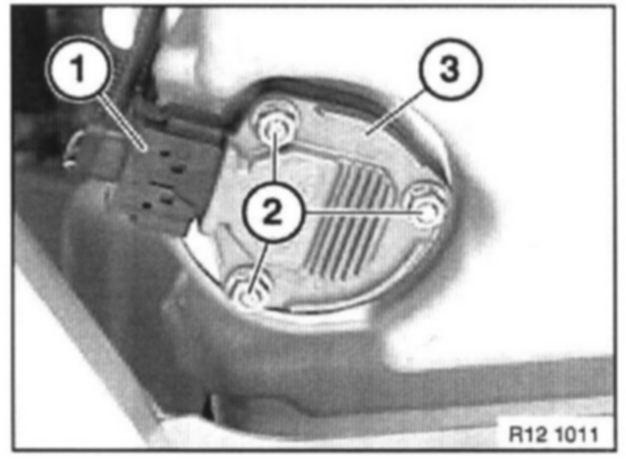

Disconnect plug connection (1).
Release nuts (2).
Remove level switch (3).

Installation:
Clean sealing surface on oil sump.
Replace seal on level switch.

Installation:
Fill system with engine oil.
Resecure oil filter cap.
Tightening torque, 11 42 2AZ.
