Replacing Transceiver (Fixed Mounting)

Removing And Installing/Replacing Transceiver (Fixed Mounting)

Remove rear seat backrest.







Release screws (1) and remove cover plate (2).

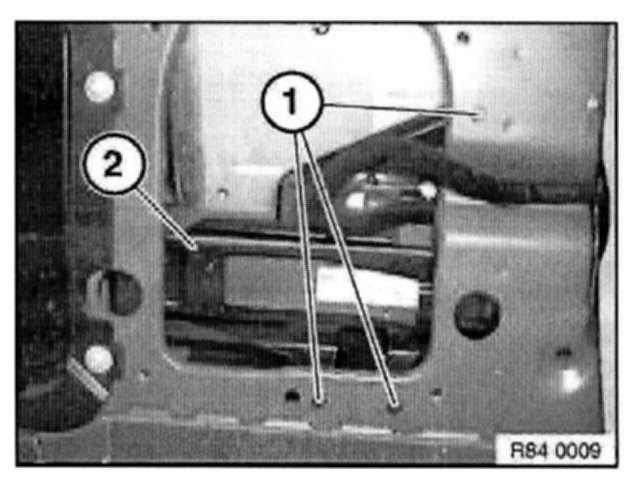

Loosen screws (1).
Remove holder for transmit-receive unit (2) and disconnect plug connections.

Replacement:
Remove holder for transmit-receive unit (2).

Installation Note: If necessary, replace sealing strip stuck to holder for transmit-receive unit (2)
