Replacing Complete on-Board Monitor (Widescreen)

Removing And Installing Complete On-Board Monitor (Widescreen)

Special tools required:
- 65 1 110

Remove center fresh air grill (with decorative strip).







NOTE:
Use of special tool 65 1 110 , shown on left side with complete on-board monitor removed (same procedure applies for use on right side):

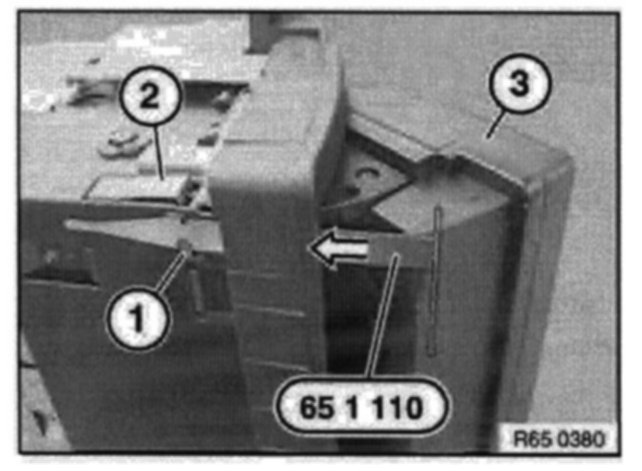

Feed in special tool 65 1 110 for extended trim for on-board monitor (3) as illustrated until paw (1) of catch (2) snaps into place.


After removing complete on-board monitor, press catch (2) and feed out special tool 65 1 110 again.







Extend trim for on-board monitor (1) as illustrated.


NOTE: Trim for on-board monitor (1) returns after approx. 15 seconds to its initial position.

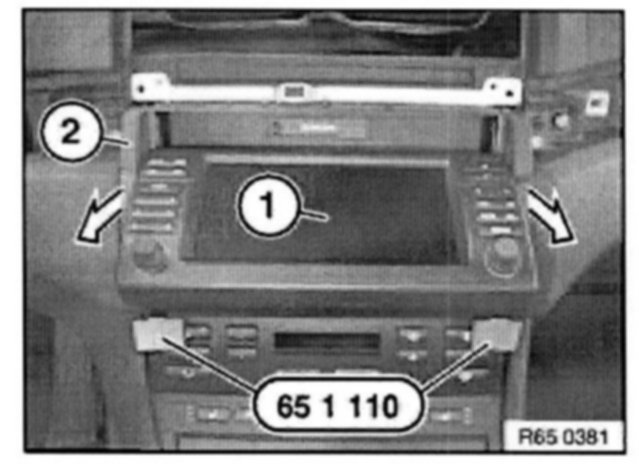

Using special tool 65 1 110 , unlock complete on-board monitor (2) at bottom left and right and pull out in direction of arrow.


NOTE: Secure complete on-board monitor (2) against falling out.


Unlock side plug connections and disconnect.
Remove complete on-board monitor (2).







Installation:

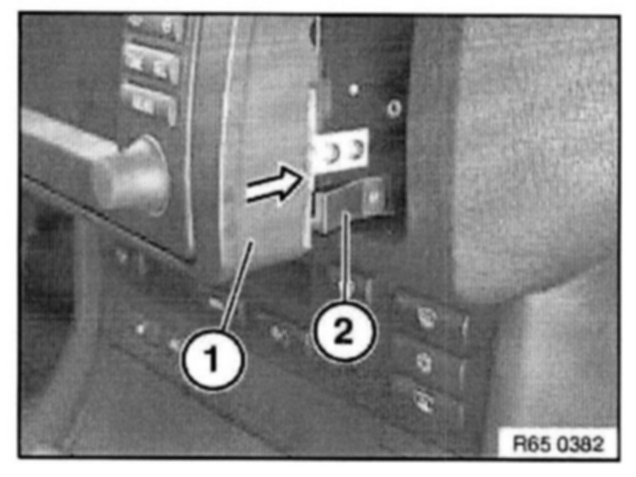

When sliding in complete on-board monitor (1), make sure catches (2) on both sides are correctly seated.
