Replacing Left or Right Outside Mirror Housing
51 16 ... Replacing Left Or Right Outside Mirror Housing
Remove mirror glass.
Tilt exterior rearview mirror towards front.
NOTE: Unlock catch (2) with special tool 00 9 321 (folding leg).

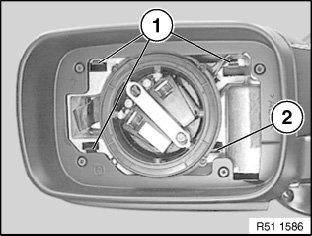

Unlock catches (1) and (2) and remove housing.
Installation:

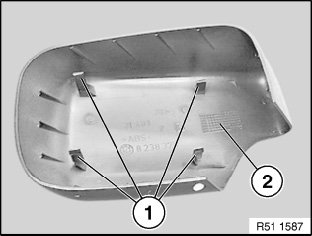

Catches on casing (2) must not be damaged.
Tilt exterior rearview mirror fully forward again.

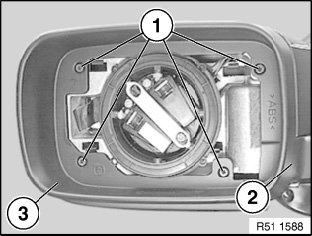

Release screws (1).
Lift out catches (2) and remove "housing frame" (3).
Installation:

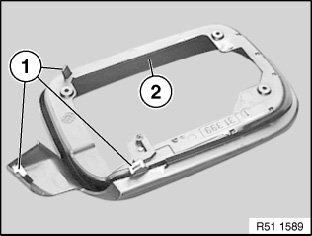

Catches (1) on housing frame (2) must not be damaged.
Check function.
