Replacing Guide For Front Left or Right Head Restraint

Removing And Installing/Replacing Guide For Front Left Or Right Head Restraint

Remove rear panel on front seat backrest:

Guide for head restraint with pushbutton:

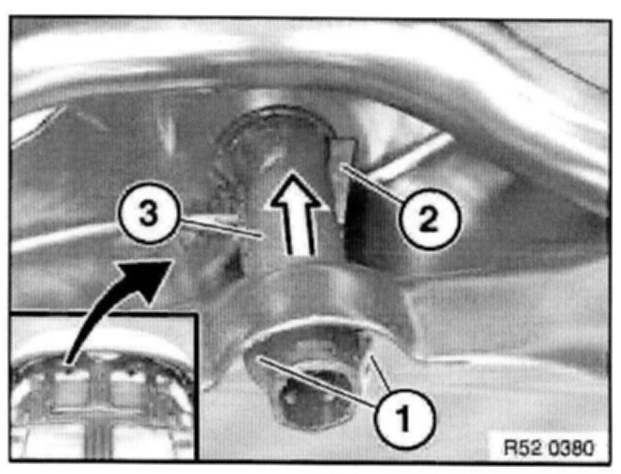

Release catches (1) and (2) and slide guide (3) upwards.

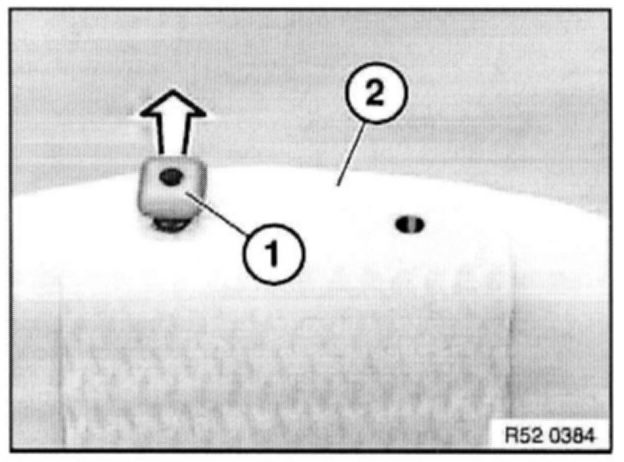

Pull guide (1) out of backrest (2).







Installation:

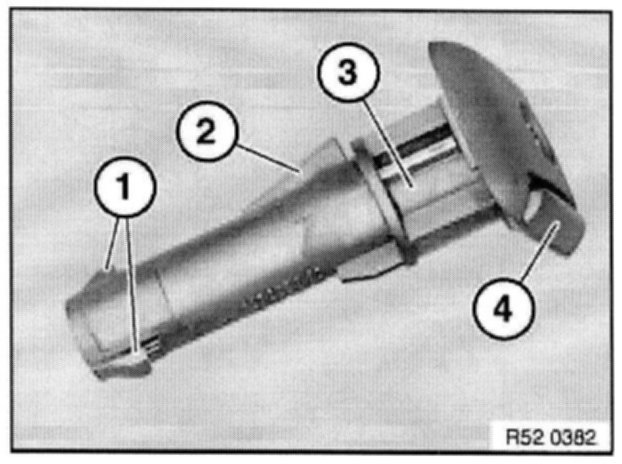

Catches (1) and (2) on guide (3) must not be damaged.
Check that pushbutton (4) works properly.
After installing guide (3), make sure it is properly seated.

Guide for head restraint without pushbutton:

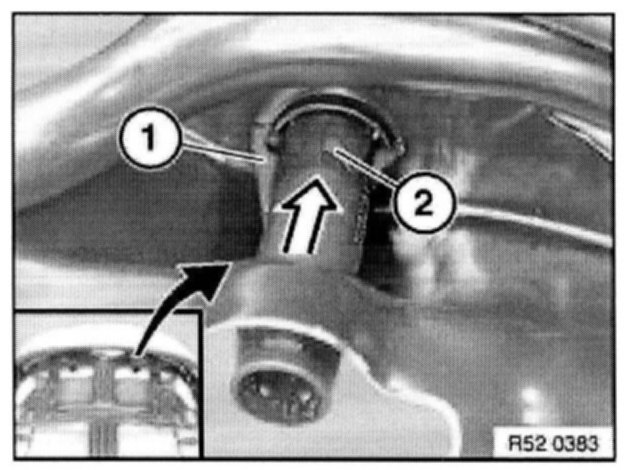

Release catches (1) and slide guide (2) upwards.







Pull guide (1) out of backrest (2).







Installation:

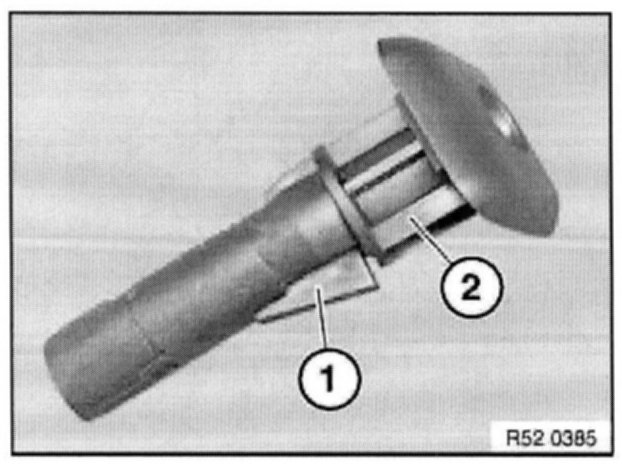

Catch (1) on guide (2) must not be damaged.
After installing guide (2), make sure it is properly seated.
