Replacing Seat Mechanism Front Seat (Normal/Electric)

Removing And Installing/replacing Seat Mechanism On Left Or Right Front Seat (Normal/Electric)

Special tools required:
- 61 2 071
- 61 2 074

Carry out following tasks beforehand:
- Remove seat pan and flexmat on front seat.
- Remove backrest frame on front seat.
- Remove seat belt tensioner.

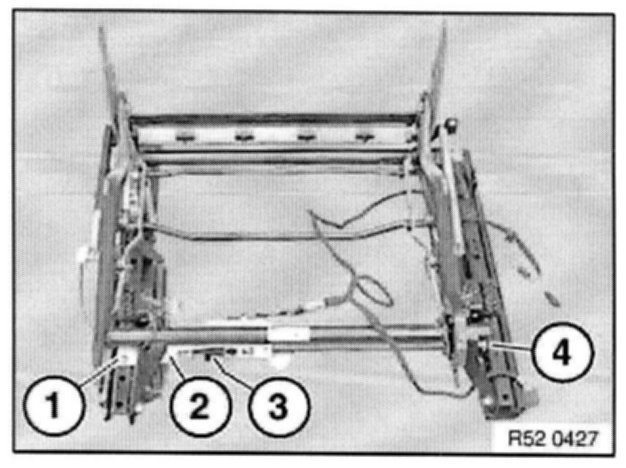

Release screw (1) and cable holder (3).
Remove retaining bracket (2) with seat wiring harness from seat mechanism (4).

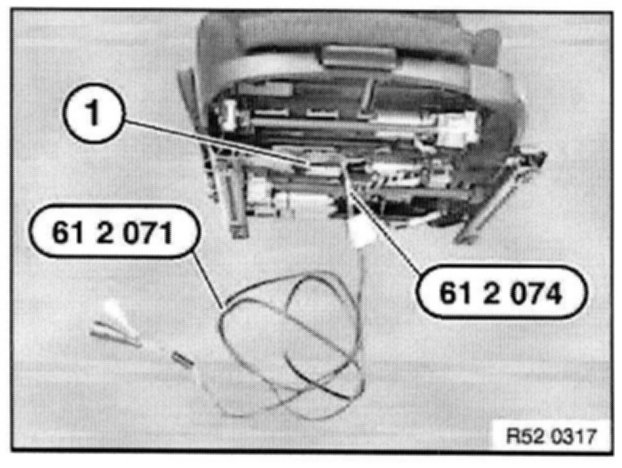

Attach cable 61 2 074 to cable 61 2 071 and connect plug connection (1) to front seat.
Connect cable 61 2 071 to battery.
Check function.
