31 60 ... Pressing Output Shaft Out of Drive Flange (Wheel Hub) and Drawing In

31 60 ... Pressing output shaft out of drive flange (wheel hub) and drawing in

Special tools required:
- 33 2 111
- 33 2 115
- 33 2 116
- 33 2 117
- 33 2 118
- 33 2 160
- 33 2 201
- 33 2 202
- 33 2 203
- 33 2 205
- 33 2 207
- 33 2 208
- 33 5 070

Warning!
Risk of injury!
It is not permitted to use the impact screwdriver to press out and draw in the output shaft.

Important! Risk of damage!
To avoid damaging the output shaft and adjoining parts, it is essential during the pressing-out process to repeatedly check and if necessary correct the position of the output shaft.

E53 and M3 only:





Important!

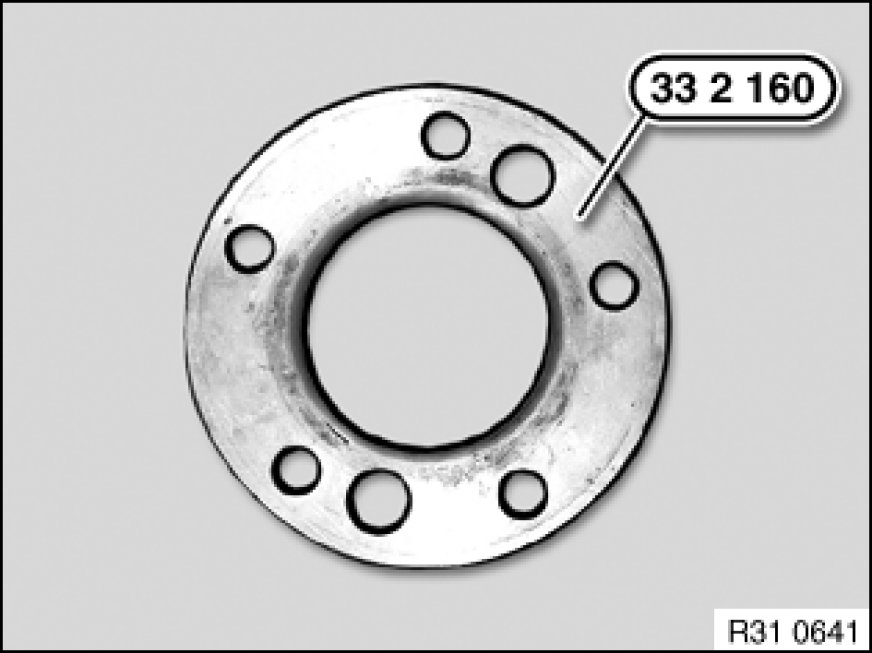

To avoid damaging the dust boot, use special tool 33 2 160 to press out and draw in the output shaft after removing the brake disc.

Note: Rounded inside edge of special tool 33 2 160 must point to drive flange.

Special tool 33 2 200:

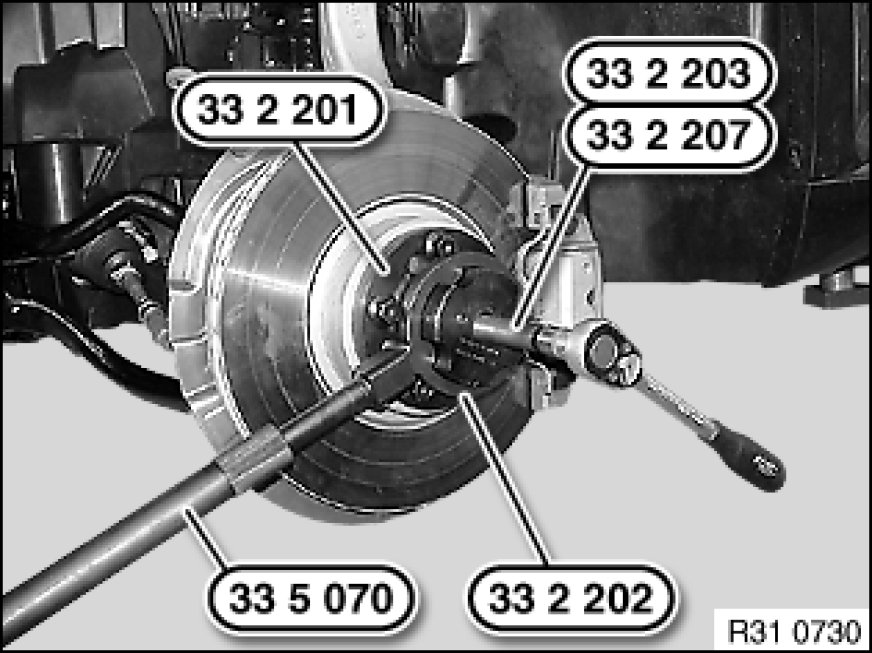

Screw on special tools 33 2 203, 33 2 207 and 33 2 201 with all wheel bolts to drive flange.

Press output shaft out of drive flange; in so doing, grip basic body 33 2 201 with special tools 33 2 202 and 33 5 070.

Important! No oil permitted on shaft journal thread!





Lightly oil spline teeth of output shaft.
Insert output shaft into drive flange.

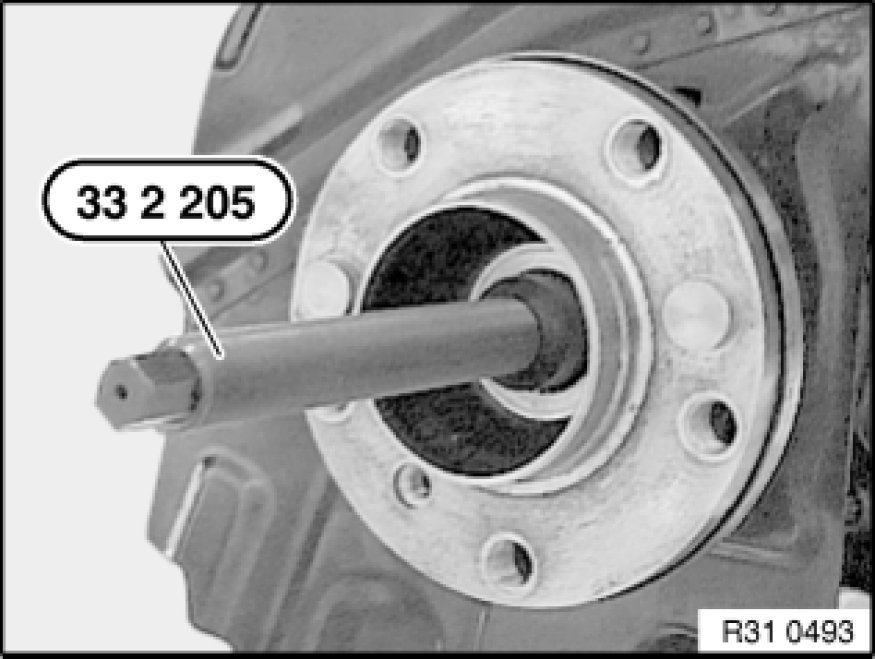

Screw special tool 33 2 205 onto output shaft.





Mount special tool 33 2 201 with three wheel bolts to drive flange.

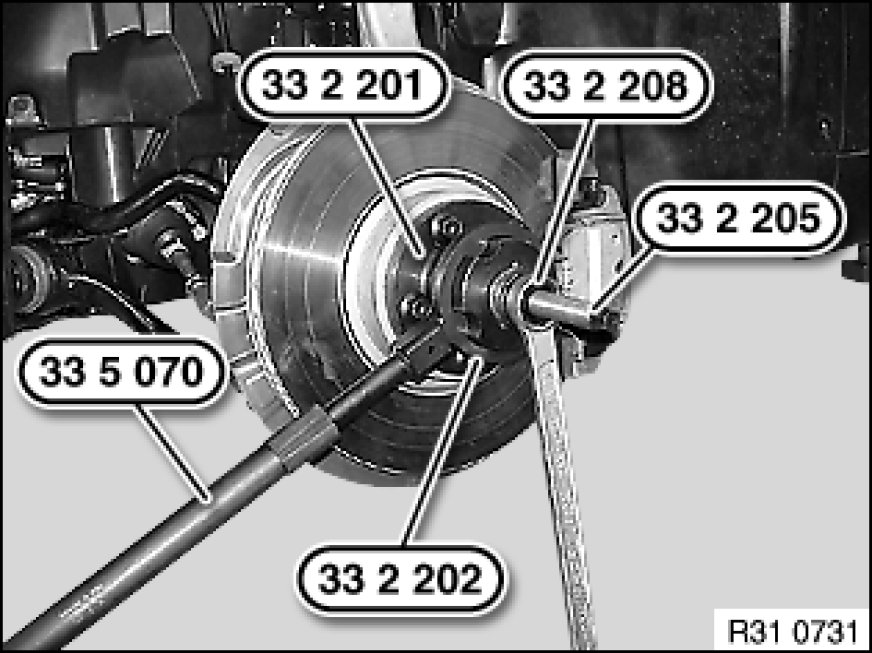

Draw in output shaft with special tool 33 2 208 up to stop; in so doing, grip basic body 33 2 201 with special tools 33 2 202 and 33 5 070.

Special tool 33 2 110:

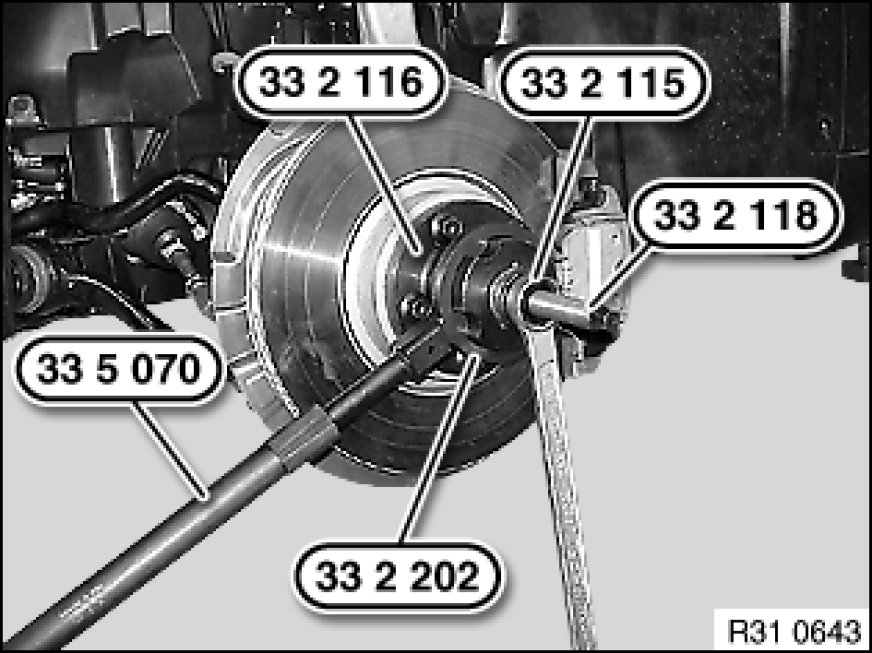

Screw on special tools 33 2 111, 33 2 117 and 33 2 116 with all wheel bolts to drive flange. Press output shaft out of drive flange; in so doing, grip basic body 33 2 116 with special tools 33 2 202 and 33 5 070.

Important! No oil permitted on shaft journal thread!





Lightly oil spline teeth of output shaft.
Insert output shaft into drive flange.

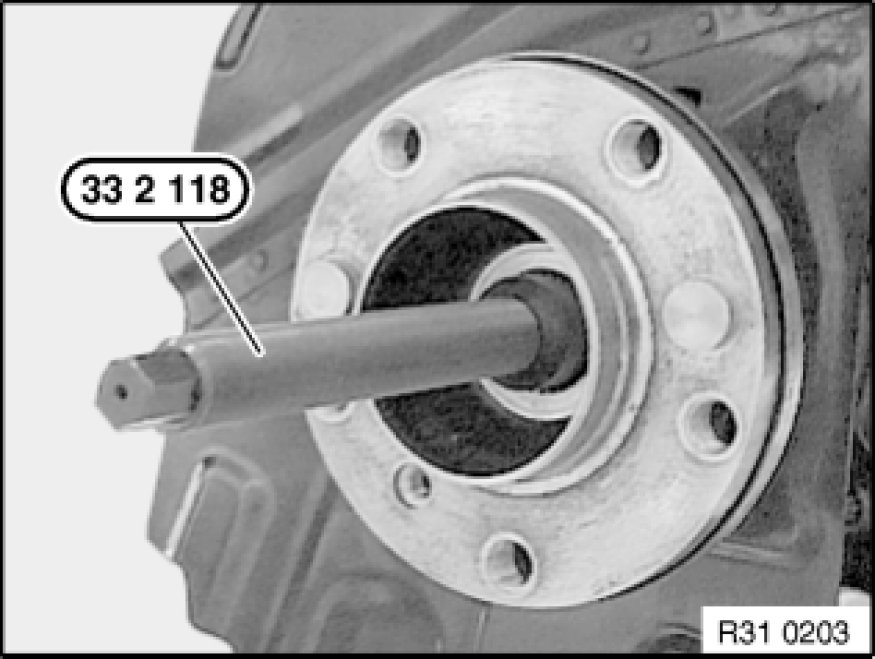

Screw special tool 33 2 118 onto output shaft.





Mount special tool 33 2 116 with three wheel bolts to drive flange.
Draw in output shaft with special tool 33 2 115 up to stop; in so doing, grip basic body 33 2 116 with special tools 33 2 202 and 33 5 070.
