Air Distribution Control

AIR DISTRIBUTION CONTROL

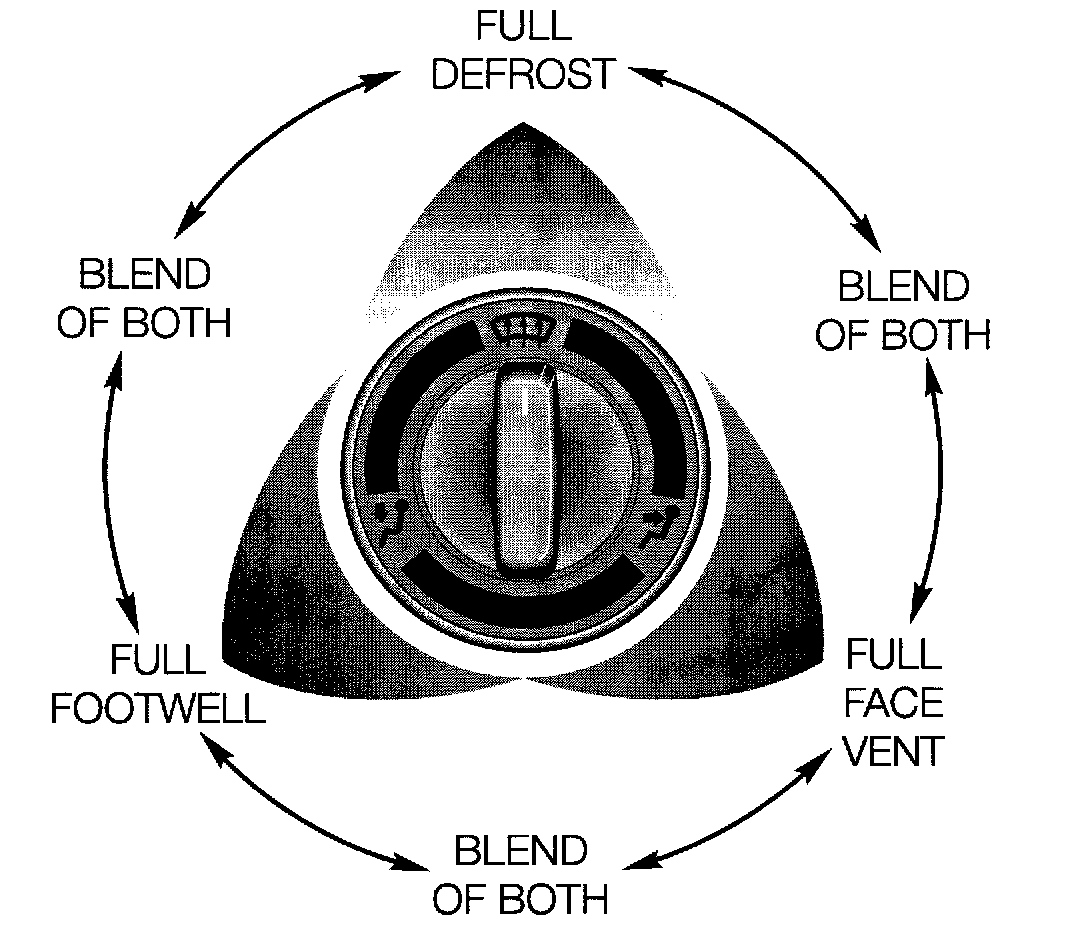

The air distribution is totally dependent on the position of the rotary knob. It is similar in operation to the E36 IHKR system. The defrost, face vent and footwell flaps are all controlled with a bowden cable and gear linkage mechanism. The knob rotates 360° to give the following air distribution shown in the image.
