Air Temperature Sensor ( Ambient / Intake ): Locations

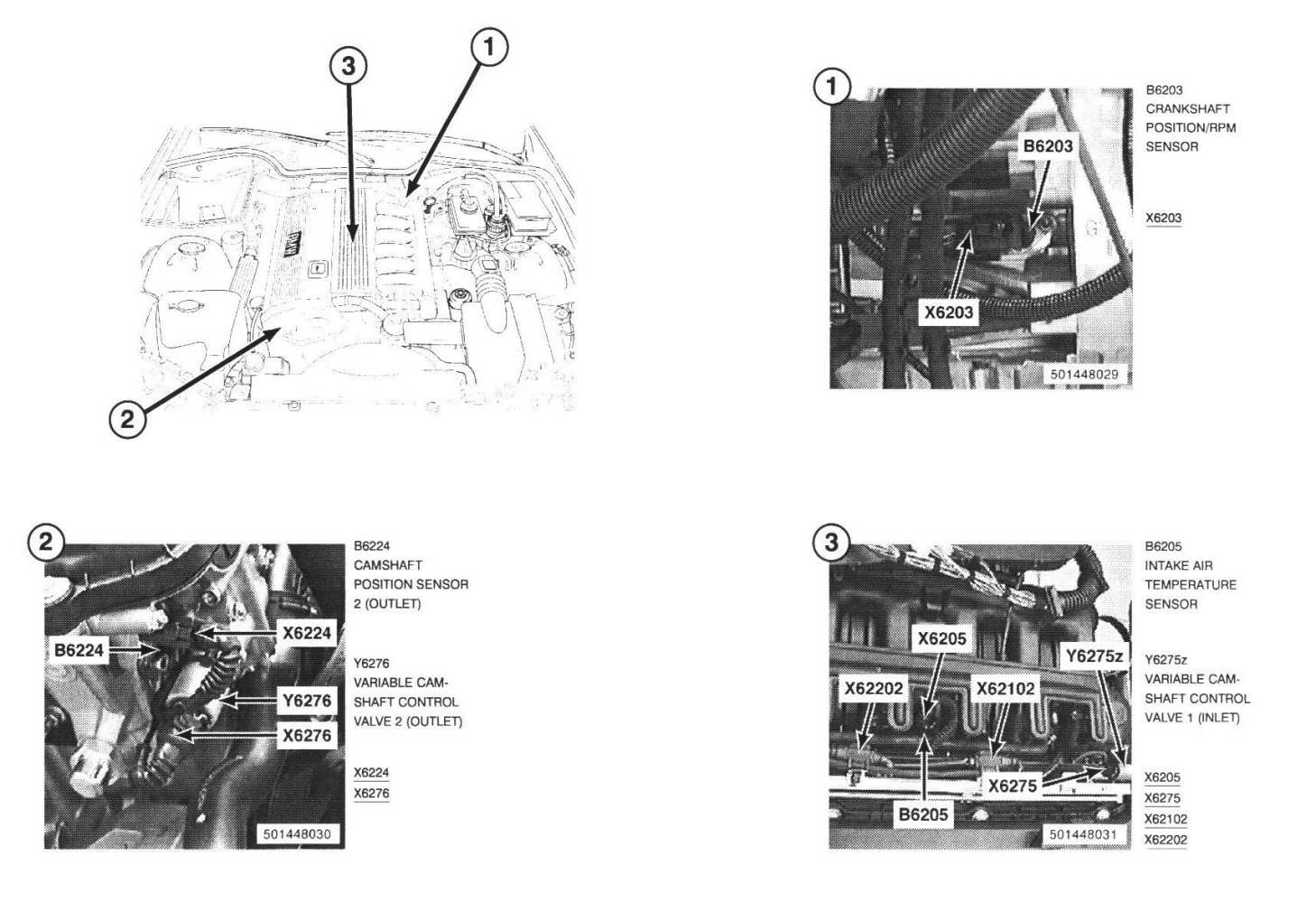

Intake Air Temperature Sensor

M Versions




Component Location View
Figure 1
Component ID B6205, Intake Air Temperature Sensor
Location Front LH Side Of Engine Compartment (M Versions)


Z3 Version
Intake Air Temperature Sensor




Component Location View
Figure 3
Component ID B6205, Intake Air Temperature Sensor
Location Top Center Of Engine (Z3 Versions)
