Front Panel, Removal
Replace Front Plate (For Actuation of Heating System)Sedan, coupe, convertible Pull off control knobs.
Remove screws and pry off front panel.
Compact Remove clock.

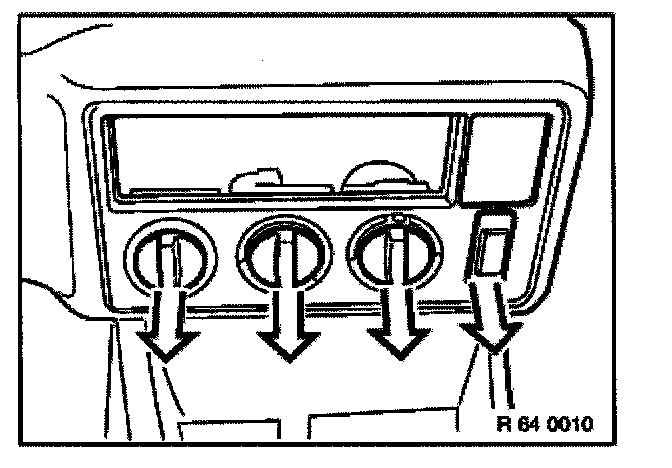

Press out switch for heated rear window. Pull off control knobs.
Unscrew bolts.

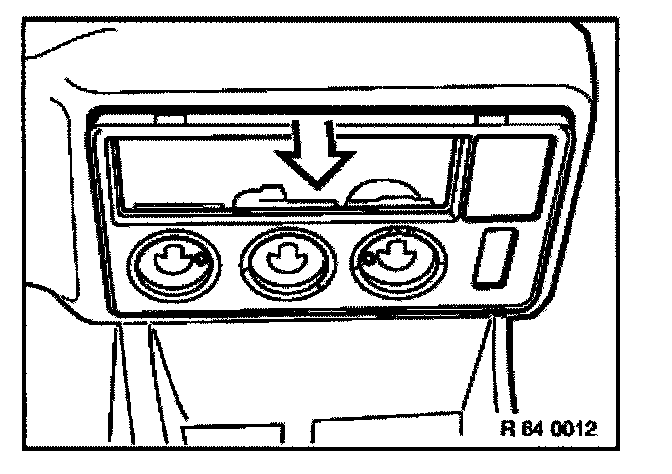

Pry off front plate.
