Discharge Air Temperature Sensor / Switch: Service and Repair




Replacing Output Stage/Switch For Heater - A/C System Blower

Remove air duct for right footwell.

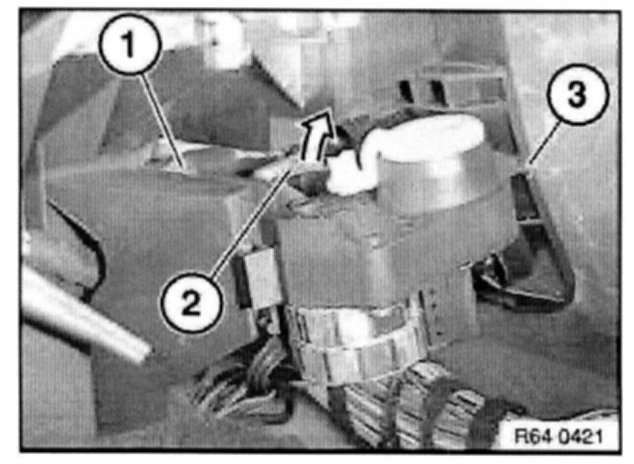

Unhook linkage (2) in direction of arrow.
Release screw (1).

Installation Note: Ensure that guide (3) is correctly seated.

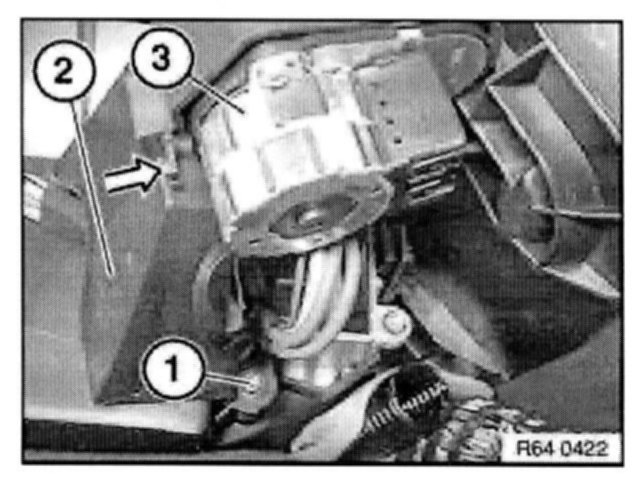

Release screw (1).
Unhook holder for actuator drive (2).
Disconnect plug connection on actuator drive (3).

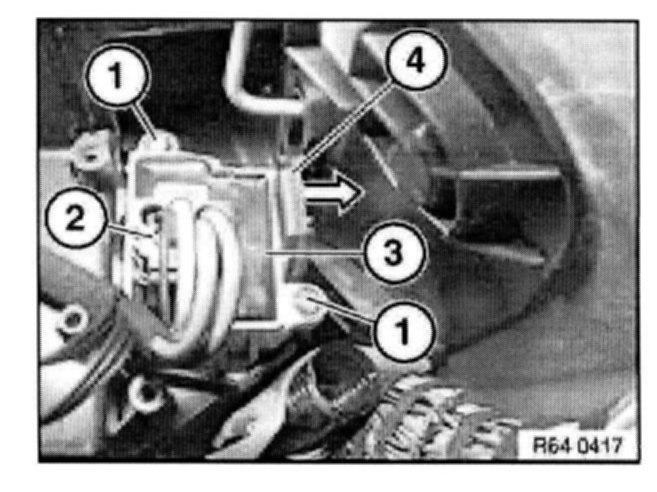

Disconnect plug connection (2).
Loosen screws (1).
Undo lock in direction of arrow and remove output stage/switch for heater - A/C system blower (3).

Installation Note: Ensure correct cable routing.
