Fluid - M/T: Service and Repair
Oil Change In Manual Transmission:
Note: Transmission at operating temperature.
-

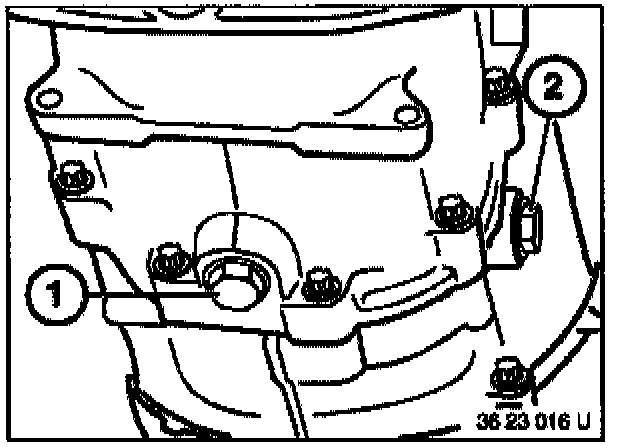

Unfasten drain plug (1) and filler screw (2).
-
Clean drain plug and screw in.
Tightening torque = 50 Nm.
-
Top up transmission fluid until it overflows.
-
Tighten in filler screw (2).
Tightening torque = 50 Nm.
