I. Vehicle Order Data Needed For the Procedure

This section describes the data you need for the procedure described in II. from the Vehicle Order XML file.

After receiving the XML file with the Vehicle Order, save it to your local drive (e.g., C:\Temp\).

The XML file can be opened with any text editor (like Notepad) or with Internet Explorer (recommended).

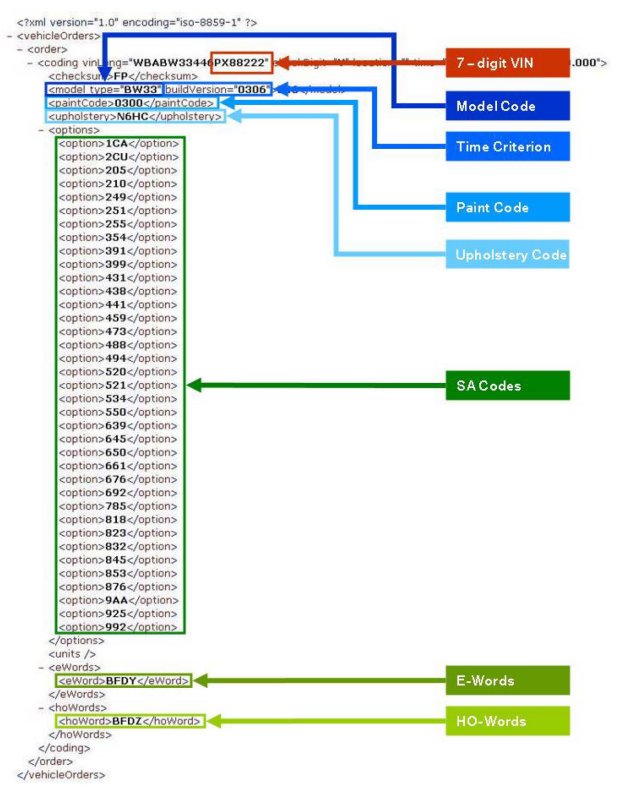

The picture show's the Vehicle Order XML file opened in Internet Explorer and the data sections you need in the procedure described in II.

Note:
The Vehicle Order XML file cannot be imported with Progman because you won't get to this option.
