Replacing Hands-Free System Speaker

Removing And Installing/Replacing Hands-Free System Speaker

Remove trim for pedal assembly.

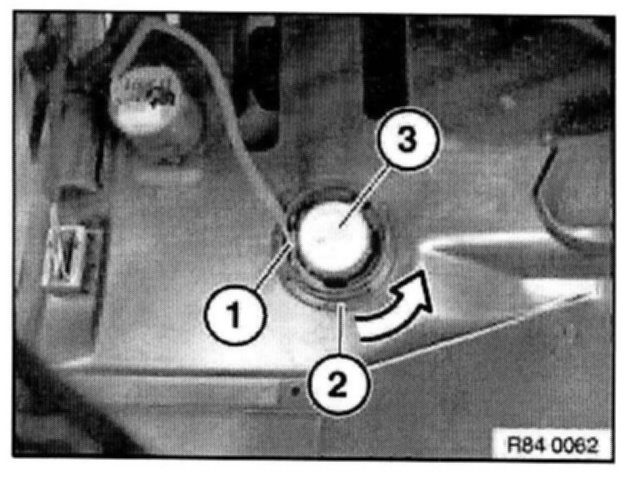

Disconnect plug connection (1).
Screw off threaded ring for speaker (2) in direction of arrow and remove hands-free system speaker (3) towards bottom.

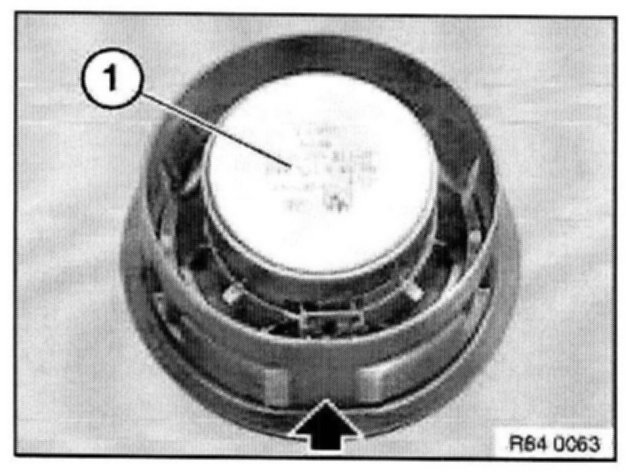

Installation Note Make sure hands-free system speaker (1) is correctly positioned in panel for pedal assembly.
