Replacing Side Section of Rear Seat Backrest (Through-Loading)

Removing And Installing/Replacing Left Or Right Side Section Of Rear Seat Backrest (Through-Loading System) (Coupe)

Remove trim on side section of rear seat backrest.
Remove rear seat.







Release rear-seat backrest and fold forward.

To unlock backrest side section:

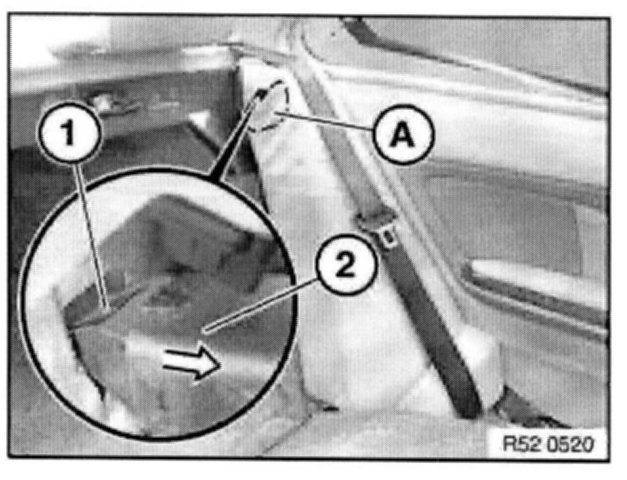

Press cover in area (A) to one side a little.
Using a screwdriver, press catch (1) downwards and pull backrest side section (2) somewhat towards front.

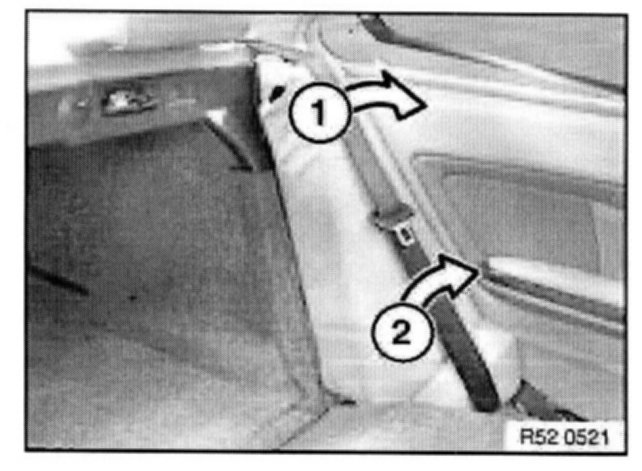

Pull side section at top (1) and pull out towards top (2).







In event of faulty clip (2):

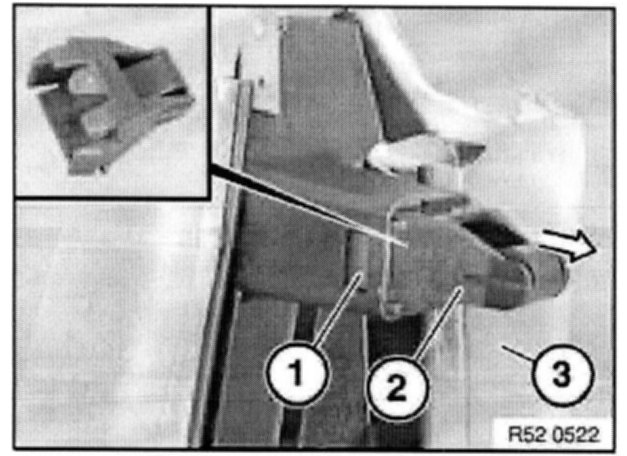

If necessary, unlock catches (1) on left/right and detach clip (2) from side section (3).







Installation:

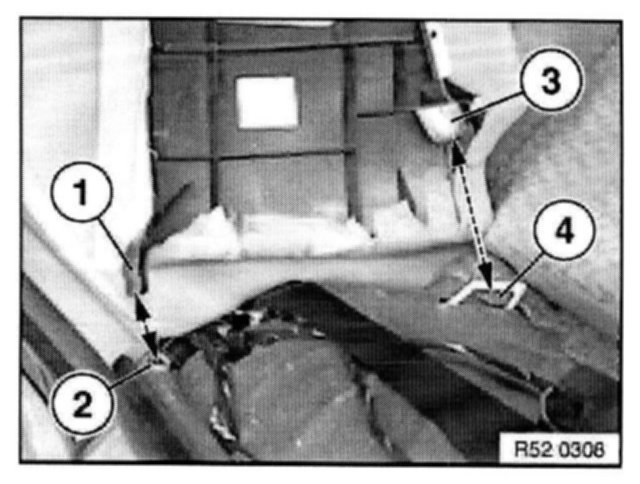

Push guide (1) into bracket (2) and guide (3) into bracket (4).
