Replacing Hub For Vibration Damper

Replacing Hub For Vibration Damper
Remove vibration damper.





Note: Remember to fit dowel pin.

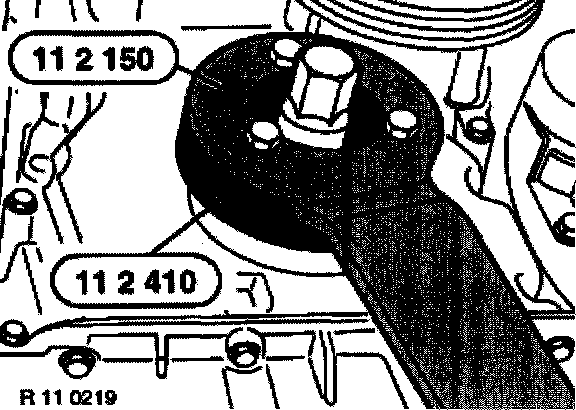

Secure special tool 11 2 150 with special tool 11 2 410 (shim) to hub for vibration damper.
When releasing and tightening down central bolt, grip special tool 11 2 150 with assistance of a second person.
If it is not possible to grip the tool securely: Remove mounted parts until the special tool 11 2 150 can be supported on the engine carrier without damaging other components.

Caution: Protect engine bracket from damage.

Insert wood between engine carrier and special tool 11 2 150.
Unscrew central bolt. Detach hub for vibration damper.

Replace radial seal in lower timing case cover.





Installation:

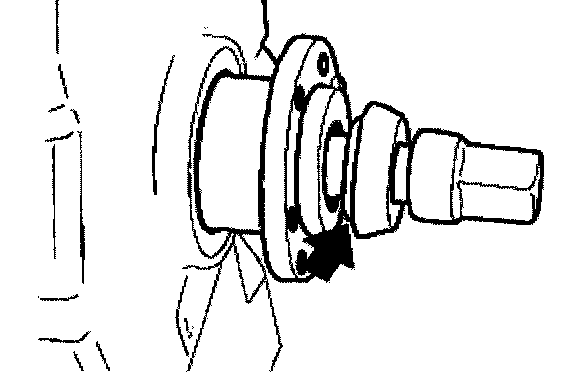

Align hub with groove to featherkey.
Shoulder of washer faces hub.
Replace central screw.
Tightening torque refer to Specifications, Mechanical.
