Compression Check: Testing and Inspection

Checking Compression Of All Cylinders

- Read out fault memory of DME control unit
- Check stored faults
- Rectify faults
- Clear fault memory

Disconnect fuel pump relay or fuel pump fuse.
Start engine and allow remaining fuel to escape.
This prevents fuel from being injected, the catalytic converter from being damaged and the test result from being distorted during the compression pressure check.

Caution: High voltage - mortal danger!

Disconnect all supply leads from ignition coils (interrupt power supply to ignition coils).





Remove all spark plugs Service and Repair

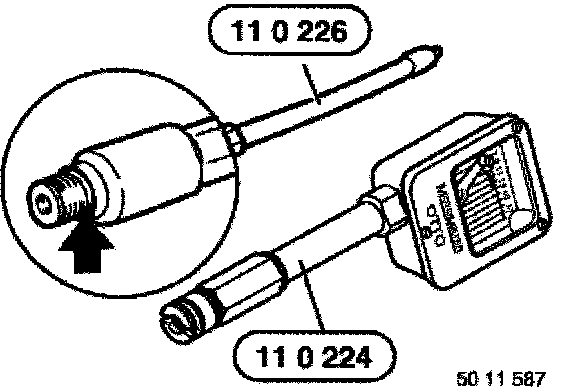

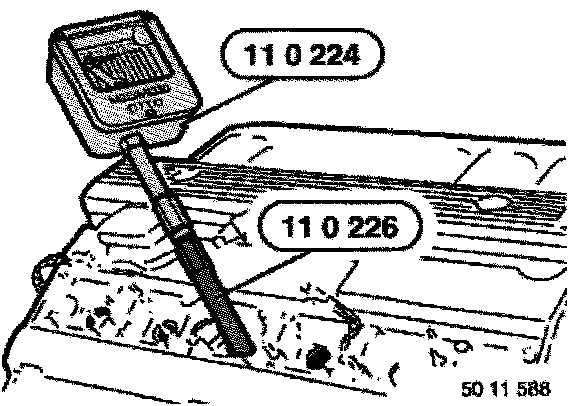

Screw special tool 11 0 226 by hand into spark plug thread and connect special tool 11 0 224.

Note: Check that seal is in perfect condition.





Depress accelerator and actuate starter until compression stops rising.
Compression pressure Specifications

Now clear the fault memory.
