Workshop Hints

Workshop Hints

Reset of the SIA can be done using special tool 62 1 110 if the vehicle is equipped with the 20 pin under-hood diagnosis connector.

On 2001 MY vehicles onward without the diagnostic connector in the engine compartment, the use of the S.I reset tool is not possible. The Service Indicator may be reset using the Reset Mode in the Instrument Cluster or with Diagnosis.

Reset procedure using the Reset Mode. (possible from 9/99 onward for E46, MY2001 E52)




- Ignition key must be "off"
- Press and hold the trip odometer button in the instrument cluster (left button), and turn the ignition key to the first position (KLR).
- Keep the button pressed for approximately 5 seconds until one of the following words appear in the display: "OIL SERVICE", or "INSPECTION", with "reset".
- Release the reset button and press and hold it again until "reset" begins to flash.
- While the display is flashing, press the left button briefly to reset the service interval. After the display has shown the new interval, the following will appear: "END SIA"

The system can only be reset again after 10 liters (2.5gal) of fuel have been consumed.

Reset using Diagnosis Program

- Connect the Diagnosis head to the diagnostic connector of the vehicle.
- Identify the vehicle and perform the Short Test.
- Select Function Selection and then Service Functions.
- Highlight Reset Service Interval Indicator (Test module S6211-00001)
- Select with tester.
- Follow the directions from the help information in the test module (upper right corner).
- Select which service is to be reset and press the continue key.
- An acknowledgement is displayed on the screen that the reset has been carried out.

Instrument Cluster Replacement
If the instrument cluster (Kombi) is replaced the SI data can be retrieved from the LSZ on E46 vehicles and from the LCM III on the E52. Coding procedures are the same as SIA II.

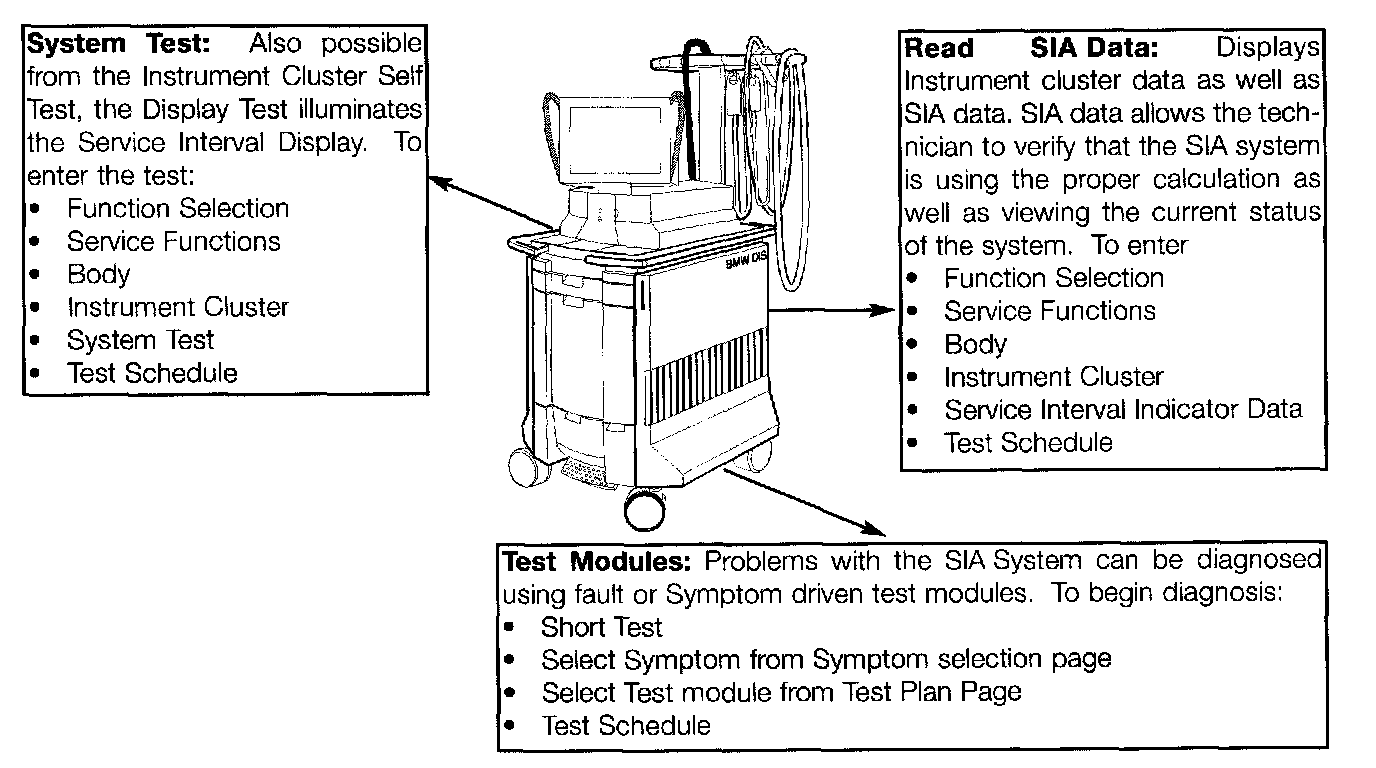

Diagnosis
Diagnosis of the SIA System is carried out using the Diagnosis program of the DISplus or MoDiC III.
