61 1 150 Releasing Tool Kit

Releasing Tool Kit

Minimum set: Mechanical tools







NOTE: For circular connector/ejector tool-Contains the kits 61 1 130, 61 1 140 and 61 1 180


Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46
Storage location: K 106
Order number: 61 1 150

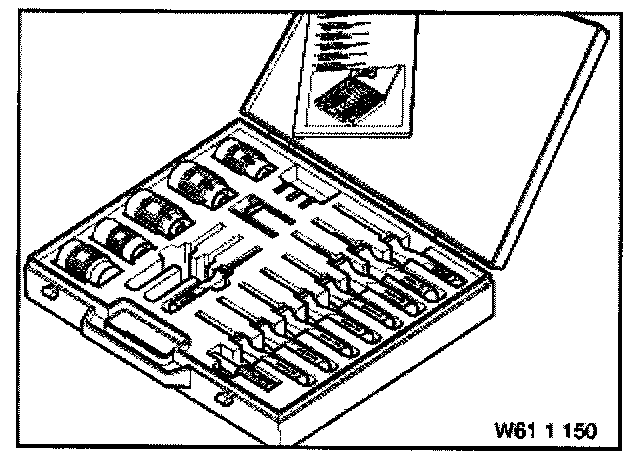

Releasing tool kit

Consisting of:
61 1 151 Removal tool


NOTE: For Power-Timer contacts/AMP and Bosch


61 1 152 Removal tool


NOTE: For Micro-Timer contacts


61 1 153 Releasing tool


NOTE: For retainers of relay holder


61 1 154 Replacement sleeve dia 1.5 mm for 61 1 139


NOTE: When ordering the case, in 8/95 the order number was temporarily used for the case inlay


61 1 155 Replacement sleeve dia 3.5 mm for 61 1 133
61 1 156 Replacement sleeve dia 2.5 mm for 61 1 132
61 1 157 Replacement sleeve dia 1.5 mm for 61 1 131
61 1 158 Case with inlay
61 1 159 Handbook
61 1 131 Removal tool


NOTE: For 1.5 mm round contacts


61 1 132 Removal tool


NOTE: For 2.5 mm round contacts


61 1 133 Removal tool


NOTE: For 3.5 mm round contacts


61 1 134 Removal tool


NOTE: For mini flat spring contacts


61 1 135 Removal tool


NOTE: For standard flat spring contacts


61 1 136 Removal tool


NOTE: For power timer contacts (G & H)


61 1 137 Removal tool


NOTE: For timer contacts


61 1 138 Box spanner


NOTE: For indicator lamps (instrument cluster)


61 1 139 Removal tool


NOTE: Slotted sleeve for Kostal round contacts, 1.5 mm diameter


61 1 141 Releasing tool


NOTE: For D 2.5/ELA, 4-pin, round


61 1 142 Releasing tool


NOTE: For D 2.5/ELA, 7-pin, round


61 1 143 Releasing tool


NOTE: For D2.5/ELA, 12-pin, round


61 1 144 Releasing tool


NOTE: For D 2.5/ELA, 25-pin, round


61 1 145 Releasing tool


NOTE: For D 1.5/ELA, 10-pin, round


61 1 149 Replacement blades


NOTE: For press-out tool 61 1 148


61 1 148 Press-out tool for SLK


NOTE: For sensor disc contacts-SLK


61 1 180 Removal tool


NOTE: For load current contacts This individual tool belongs to 61 1 150
