Replacing Front Plate (Air Conditioner Control)

Replacing Front Plate (Air Conditioner Control)

Remove heating controls.

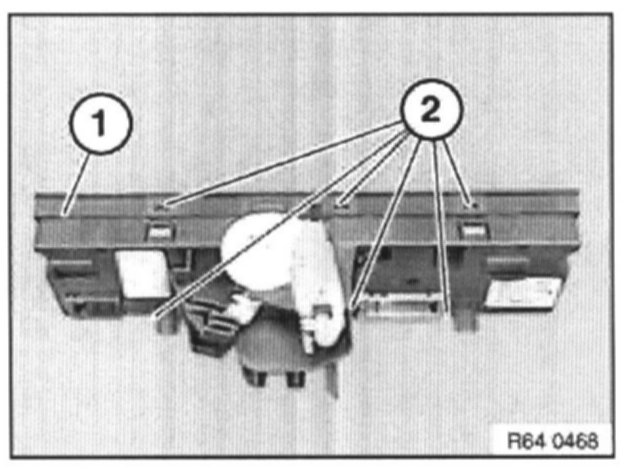

Lever out front plate (1) at openings (2) and remove.
