Removing and Installing/Replacing Fan Cowl

17 11 031 - Replacing fan cowl (N73)





Necessary preliminary tasks:
- Remove fan clutch Service and Repair.





Unfasten screws.

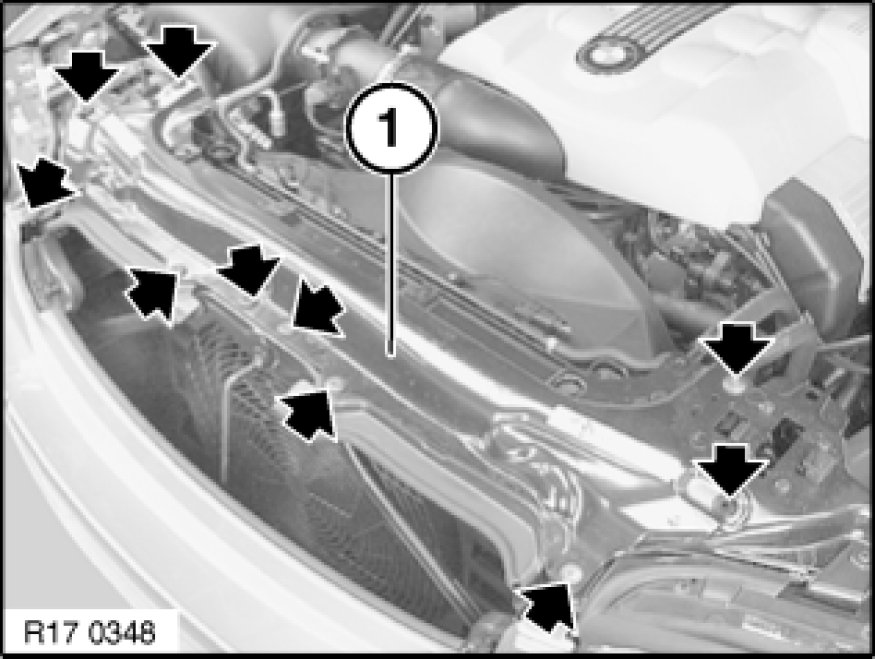

Remove front wall (1).





Unfasten screws.
Remove radiator cowling (2).
Unclip auxiliary fan cover and remove.





Unlock plug (1) on AUC sensor and disconnect.
Unclip plug connection (2).
If necessary, unclip AUC sensor (1).





Raise fan cowl (1) approx. 3 cm.





Note:
For purposes of clarity, this work step is shown on the fan cowl after it has been removed.

Fold left retaining tab to fan cowl (1).

Remove fan cowl (1) towards top.





Installation Note:
Insert retaining tab (2) at bottom on module carrier.





Assemble engine.
