Removing and Installing Complete Rear Bumper (HP)

51 12 000 Removing And Installing complete rear bumper (HP)

NOTE: Refer to KSD CD for details of preliminary tasks.







Unclip cover (1) with assembly wedge (2) and unhook in direction of arrow.







Release screws (1) on left and right.
Lift out wheel arch trim (2) on left and right.







Release nuts (1) on left and right.

Installation:
2AZ Bumper / carrier to impact absorber
M12 55 Nm







Open rear lids.

Version with PDC option:

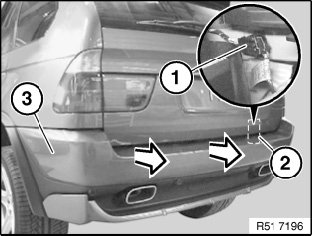

Disconnect plug connection (1) in area (2).
Pull off bumper (3) slightly towards rear, feed out PDC wiring harness in area (2).
Remove bumper (3) in direction of arrow.
