Motorola V-Series (W/O SES Language-Input System W/ TEL Telephone Interface As of 03/02)

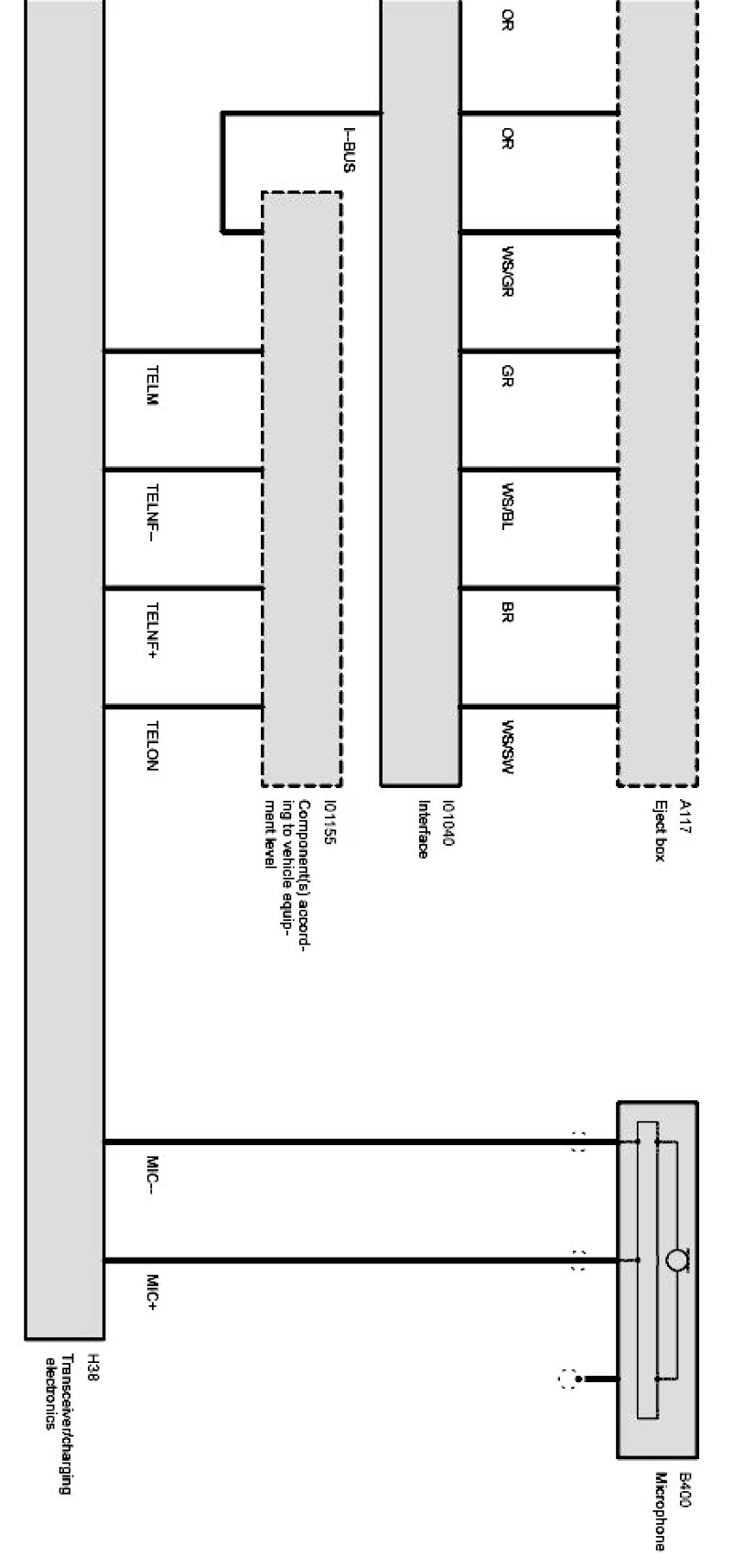

E53 Motorola V-series Part 1 Of 4:



E53 Motorola V-series Part 2 Of 4:



E53 Motorola V-series Part 3 Of 4:



E53 Motorola V-series Part 4 Of 4:
