Replacing A Spark Plug Connector



Replacing A Spark Plug Connector (M60, M62, M54)

Switch off ignition.
Remove ignition coils.

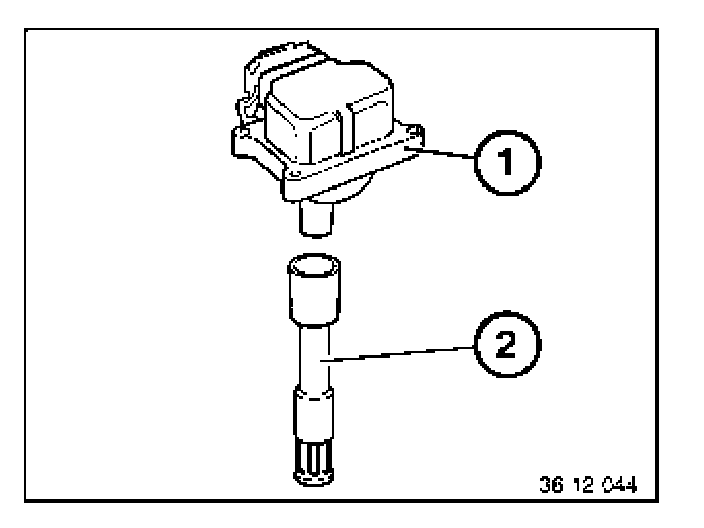

Detach ignition coil (1) from spark plug connector (2).
