Fuel Filler Hose: Service and Repair

Removing And Installing Or Replacing Fuel Filler Pipe







Unhook retaining strap (1) from tank flap.
Open cap and set to one side.
Draw off fuel from fuel tank.







Remove rear right wheel.
Remove rear right wheel arch trim.







Unfasten hose clip (1).

Installation:
Replace hose clamp.
Tightening Torque, Hose clamps 37 - 43 mm dia. 4 Nm

Detach hose (2) from fuel tank (3).







Release plastic nuts (1).







Slacken nut (1).
Withdraw fuel filler pipe (2) completely out of rubber gaiter at wheel housing.


CAUTION:
After installing fuel filler pipe, check electrical resistance between grounding lead (tank filler pipe) and wheel hub.
Measured value: approx. 0.6 (Ohm)

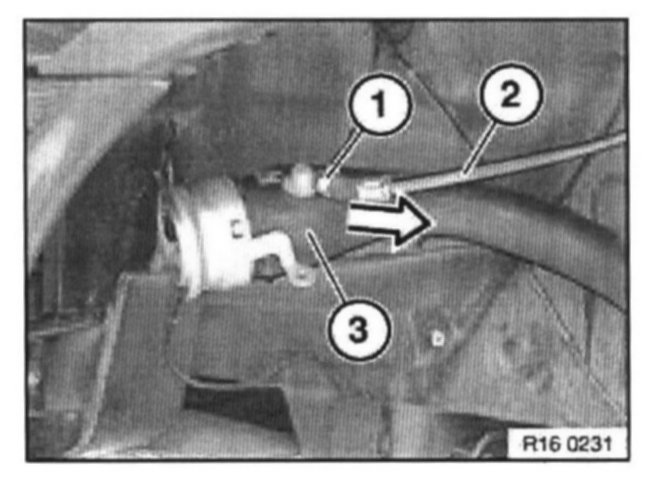

Unfasten hose clip (1).

Installation:
Replace hose clamp.
Tightening Torque,Hose clamps 10 - 16 mm dia. 2 Nm

Detach vent line (2) with hose (2) from fuel tiller pipe (3).
