Discharge Air Temperature Sensor / Switch: Service and Repair

64 11 916 - Replacing temperature sensor for cold-air distributor





Necessary preliminary tasks:
- Remove audio system controller Removing and Installing/Replacing Audio System Controller
Car Communication Computer Removing and Installing/Replacing Car Communication Computer.

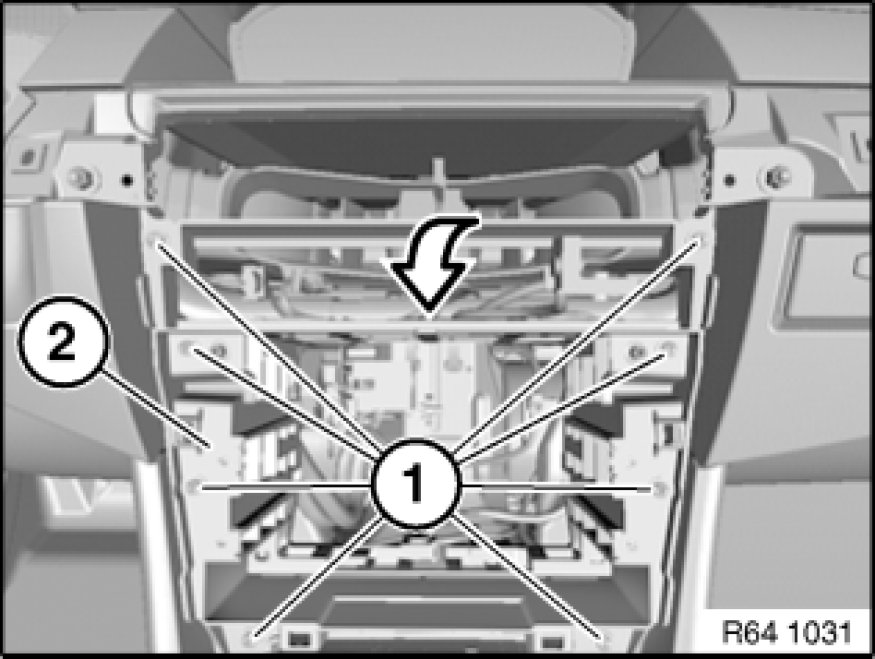

Release screws (1).
Fold back middle function carrier (2) in direction of arrow.

Installation:
Make sure middle function carrier (2) is correctly seated.

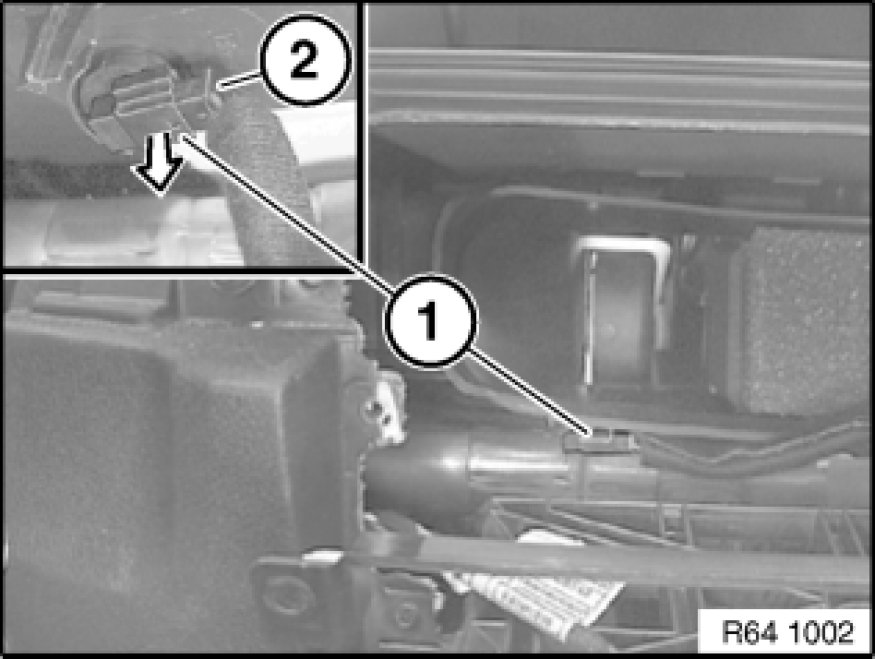

Turn temperature sensor for cold-air distributor (1) through approx. 90° and pull out in direction of arrow.
Unfasten plug connection (2) and disconnect.

Installation:
Make sure temperature sensor for cold-air distributor (1) is correctly seated.
