Fuel Filter: Locations

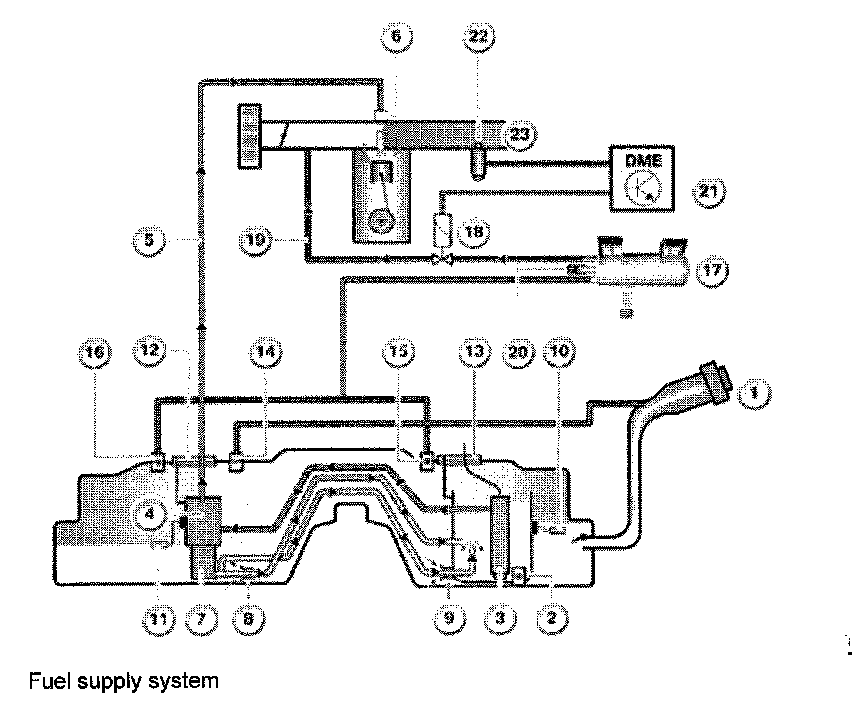

Fuel Filter Location






The fuel filter is integrated along with the fuel pressure regulator and is located in the fuel tank.

1. Fuel filler neck
2. Outlet protection valve
3. Electric fuel pump
4. Fuel Filter
5. Feed line
6. Fuel injectors
7. Pressure regulator
8. Suction jet pump, left
9. Suction jet pump, right
10. Fuel level sensor, right
11. Fuel level sensor, left
12. Service opening, left
13. Service opening, right
14. Filler vent connection
15. Service vent valve
16. Service vent valve
17. Carbon canister
18. Tank vent valve
19. Purge air from carbon canister to intake manifold
20. Air filter (insect strainer)
21. Digital Motor Electronics
22. Lambda oxygen sensor
23. Exhaust manifold
