Sunroof / Moonroof Module: Service and Repair




61 35 714 - Removing and installing/replacing control unit for sliding/tilting sunroof (up to 03/07)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove trim for instrument panel at bottom right 51 45 181 Removing and Installing/Replacing Bottom Right Trim For Instrument Panel

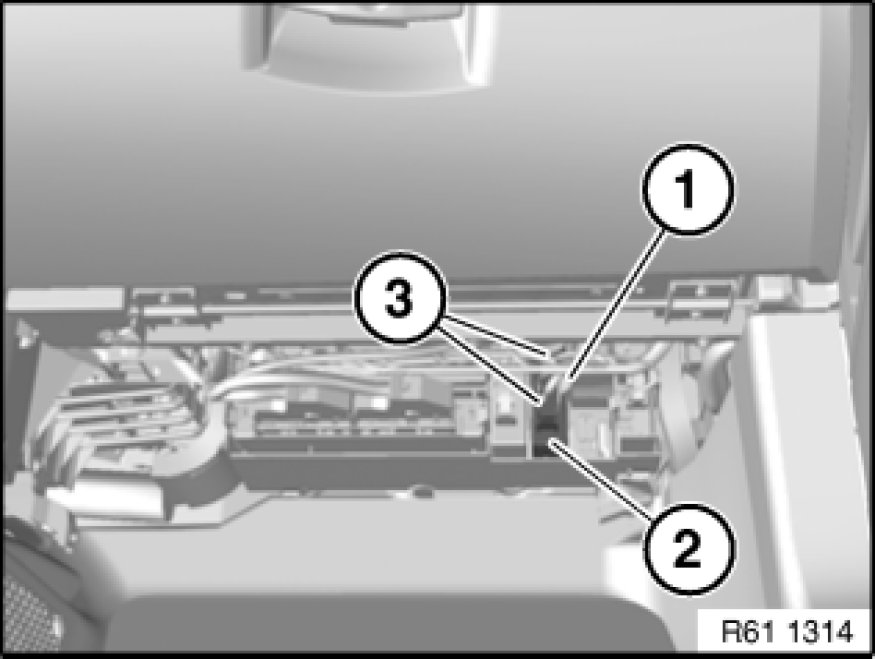

Open lock (1) and pull back control unit for slide/tilt sunroof (2).
Disconnect associated plug connections (3).
Remove control unit for slide/tilt sunroof (2).





Installation Note:
- Initialize slide/tilt sunroof





Replacement:
- Carry out vehicle programming/coding Programming and Relearning

Important!
There is a risk of permanent battery discharge if programming/coding is not carried out!
