Removing And Installing/replacing Starter Motor (N62)

Necessary preliminary tasks:
- Switch off ignition
- Follow instructions for disconnecting and connecting battery
Disconnect battery negative lead and cover
- Remove reinforcement plate
- E60/E63/64/E65/E66 only:Remove right exhaust manifold

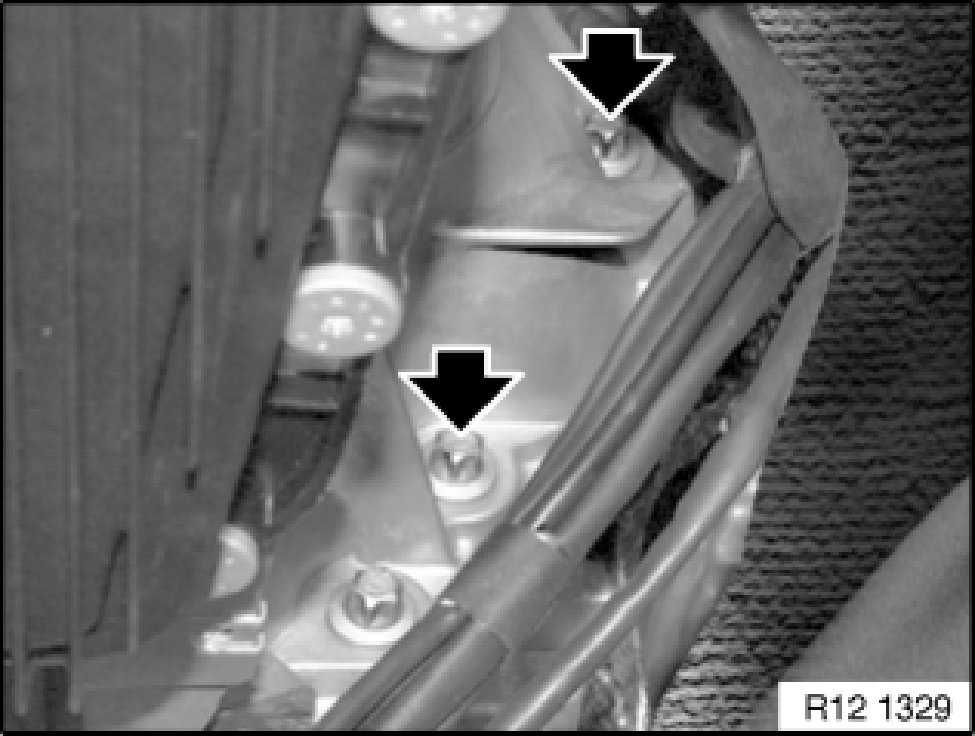

Release screw and nut.

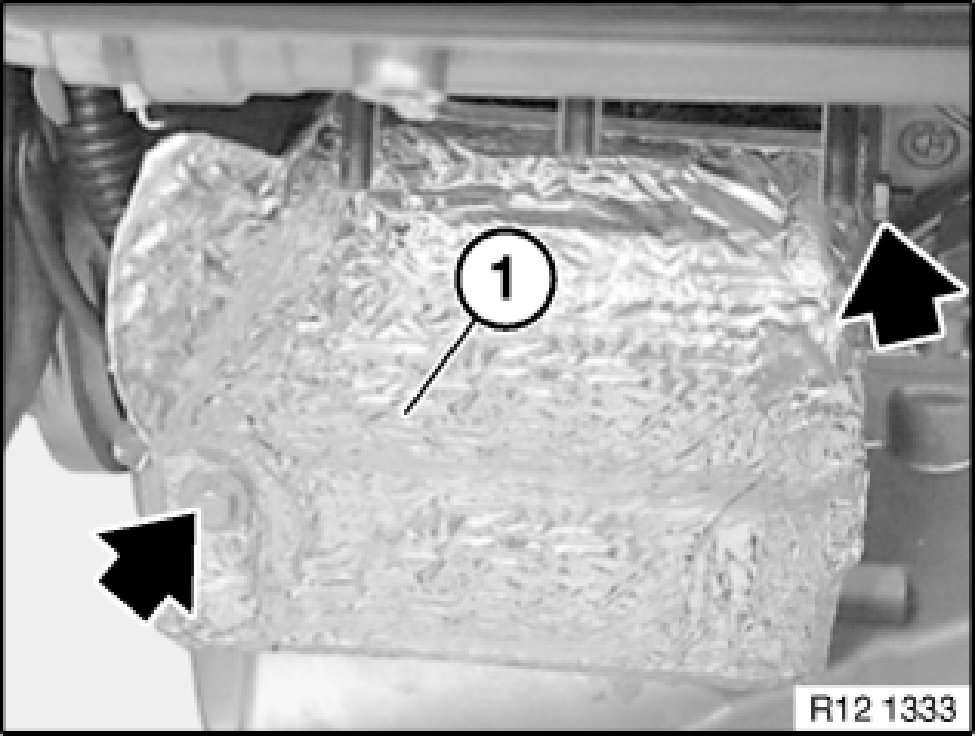

Remove heat shield (1).







Unfasten nut.

Tightening torque
4AZ Electrical leads to starter
M5 5 Nm
M6 7 Nm
M8 13 Nm

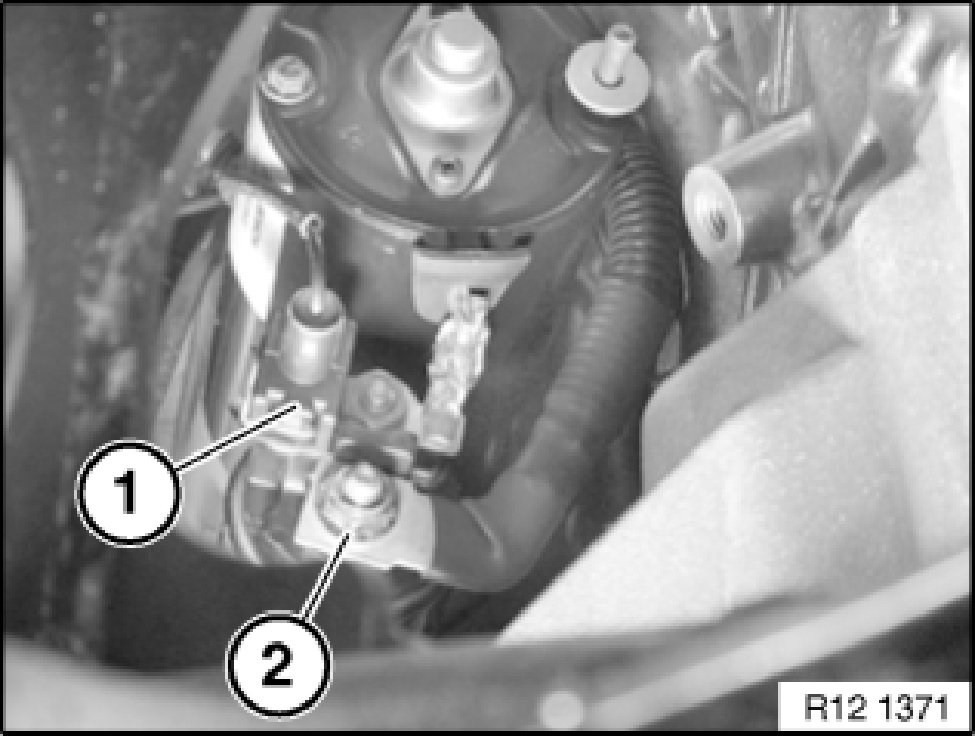

Unlock plug (1) and remove.







Release screws and pull release out of transmission mounting and remove.

Tightening torque
1AZ Starter motor mounting to transmission bell housing 45 Nm

Installation:
Check starter pinion and ring gear for damage, replace damaged parts if necessary.
