Manifold Pressure/Vacuum Sensor: Service and Repair




13 62 010 - Removing and installing/replacing differential pressure sensor (N62, N62TU)

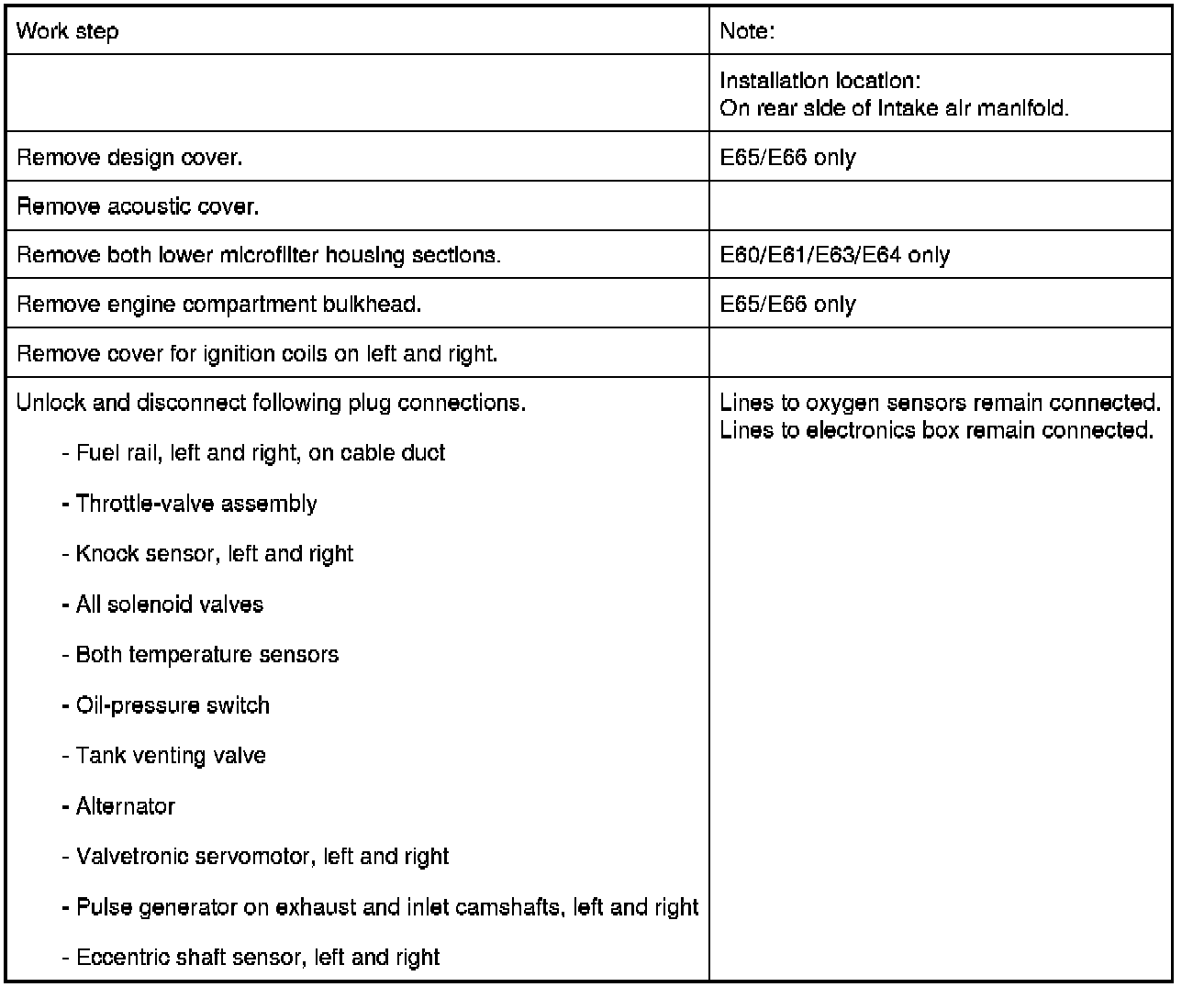

Necessary preliminary tasks:
- Read out fault memory of Digital Motor Electronics (DME) control unit; if necessary, work through test schedules
- Switch off ignition









Unfasten screws.
Take off holder (4).
Lay cable ducts to one side.





Unlock plug (1) and remove.
Unfasten screws.
Pull differential pressure sensor (2) out of intake air manifold.





Installation:
Now clear the fault memory.
