Heater Core Temperature Sensor / Switch: Service and Repair
64 11 910 - Removing and installing/replacing temperature sensor for heater coreNecessary preliminary tasks: -
Remove switch unit in center console

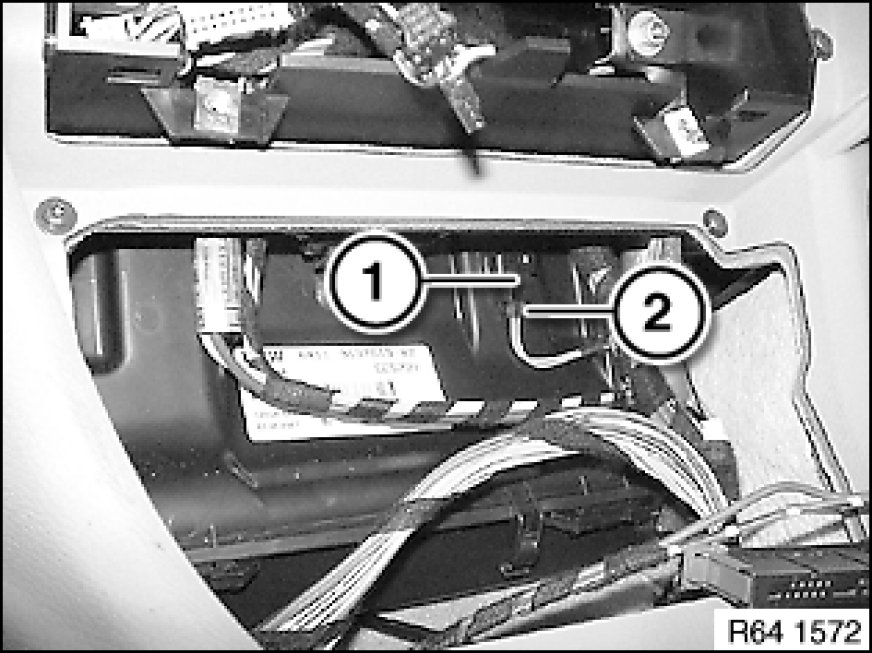

Removing and Installing/Replacing Switch Unit in Center Console Remove temperature sensor (1) and disconnect plug connection (2).
