Removing and Installing/Replacing Relay/Module (In Device Holder on Left)

61 31 465 - Removing and installing/replacing relay/module (in device holder on left)

Necessary preliminary tasks:
- Remove luggage compartment floor trim panel 51 47 101 Removing and Installing/Replacing Luggage Compartment Floor Trim Panel
- Disconnect battery negative lead Disconnecting and Connecting Battery Negative Lead

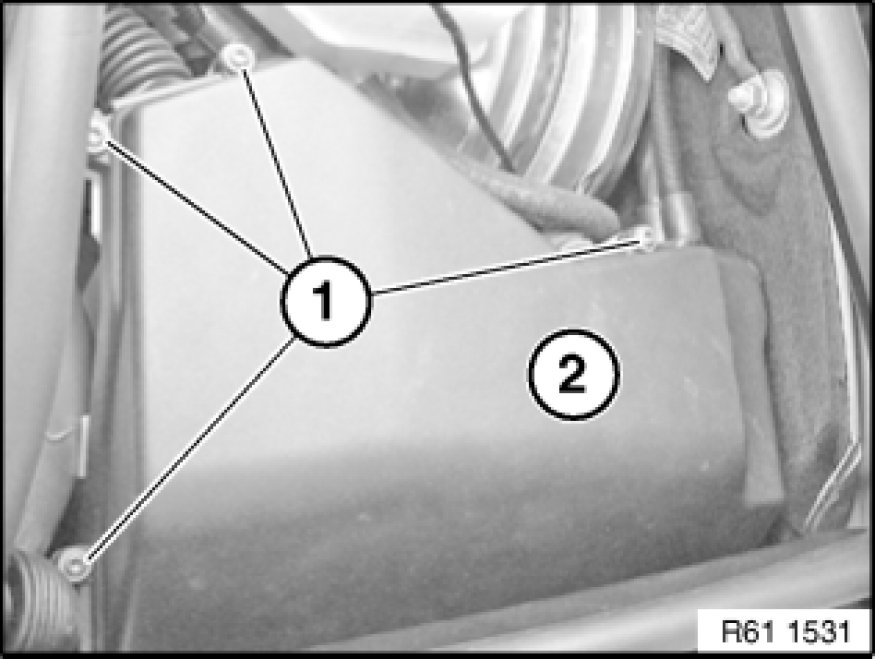

Release screws (1).
Remove electronics box cover (2).

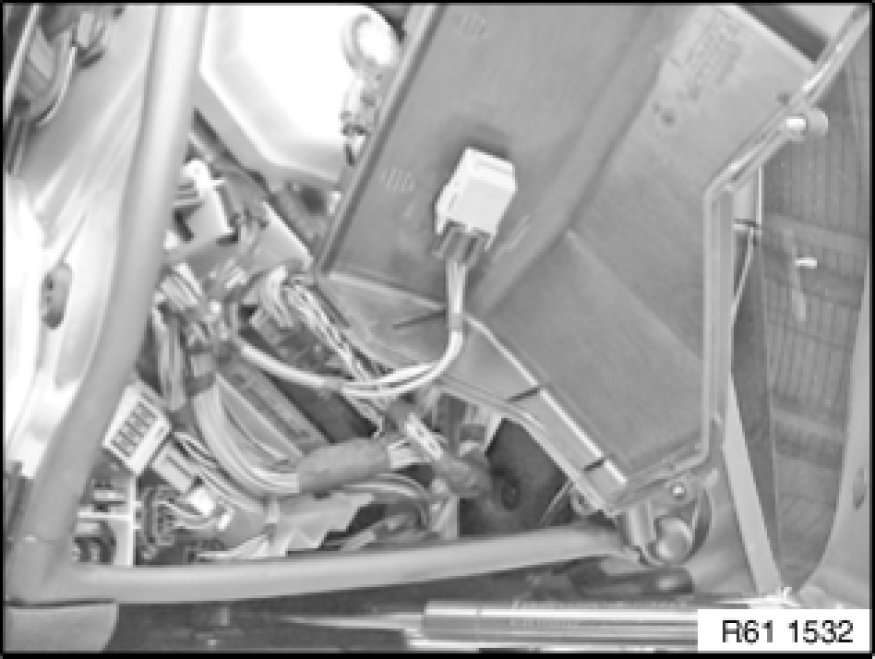

Detach relay.
