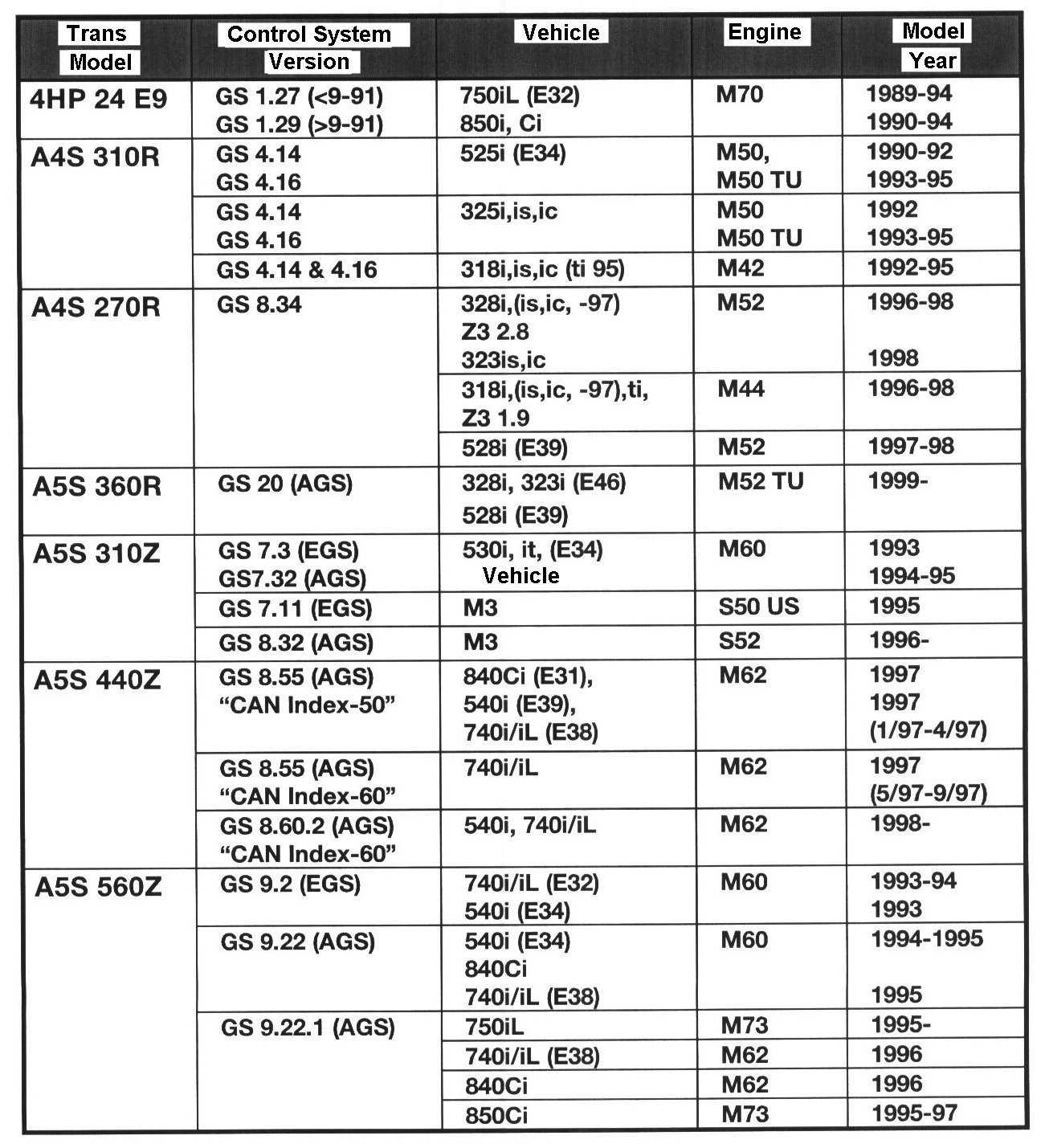

Identification Chart
Transmission Control System Version Identification By ModelAutomatic Transmissions and control system technology has evolved through the model years. The evolution is due to continued refinement and total vehicle system communication integration. Same version
transmission control systems in many cases are different from vehicle to vehicle increasing the total number of system variations.
